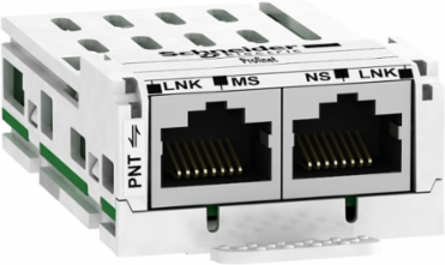

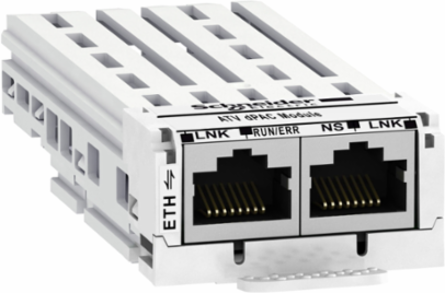

Schneider Electric VW3A3530D dPAC module, Altivar, 10/100Mbps, 2 x RJ45 connectors
Schneider Electric VW3A3530D dPAC module, Altivar, 10/100Mbps, 2 x RJ45 connectors
- MPN: VW3A3530D
- PPN: SCH-VW3A3530D
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$529.48/ EA
Description
The Altivar dPAC module is part of the EcoStructure Automation Expert hardware controller range. It is a drive integrated dPAC controller that supports Altivar 340 and Altivar Process 600 and 900 drives. The controller carries standard Altivar Process and Altivar Machine extended I/O, relay and encoder modules. It is an drive-embedded IEC 61499 controller for highly distributed and drive centric architectures. It includes 7MB program memory, dual RJ45 Ethernet sockets and supports 16 Modbus/TCP clients, OPC UA and auto discovery. The module is compatible with Altivar Process Drive and Machine Drive I/O modules. It weighs 0.02kg (0.04lb). EcoStruxure Automation Expert is a new category of software defined automation, enabling next generation integrated architectures and Industry 4.0 solutions. Depending on the specific drive type used for ATV dPAC integration, the standards and certifications must be checked in the corresponding ATV340/600/900 manual.
Features
- A new category of software defined automation.
- Driving towards 100% engineering efficiency.
- Ready for 100% effectiveness.
- Now 100% future-proof.
Specifications
Communications & Management Attributes
- Communication Network Type
- IPv4 (internet protocol), IPv6 (internet protocol)
Communication ServiceModbus TCP/IP server, OPC UA server, SNTP client, NetIO server, WebSocket server, SysLog server, DPWS (IPv6), Altivar drive Modbus TCP/IP server, Modbus TCP/IP client, NTP synchronization, OPC UA client, EcoStruxure automation expert archive, EcoStruxure automation expert cross-communication, EcoStruxure automation expert HMI
Conformance Attributes
- Product Certifications
- CE, UKCA
Complementary Attributes
- Integrated Connection Type
- dual-port Ethernet 2 RJ45 connectors
Important Information Attributes
- Local Signalling
- 1 LED for RUN/ERR (Module Status), 1 LED for NS (Network Status), 1 LED for TX/RX (Transmit/Receive port 1)
- Web Services
- save/restore drive configuration, drive setting and diagnostic, energy monitoring, widgets (ID, control, data table, diagnostic, charts), customizable home page, drive monitor, customizable dashboards
- Local Publishable Date
- 2026-01-12
- Serviceability
- Yes
- Field Service Division
- IDIBS
- Legacy WEEE Scope
- Out
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Exchange Mode
- half duplex and full duplex
- Port Ethernet
- Ethernet 10BASE-T/100BASE-TX - 2 copper cable
- Product Or Component Type
- processor module
- Realtime Clock
- with VW3A1111 Altivar graphic display terminal
- Sustainable Packaging
- No
- Medium Desc
- dPAC module, Altivar, 10/100Mbps, 2 x RJ45 connectors
- Product Kit Identifier
- N
- Web Server
- Altivar drive Embedded HTTPS server
- Us Rated Supply Voltage5
- 24 V DC supplied by the host Altivar drive
Topologydaisy chain, star
Local Data StatusPublishable
Device TypePLC System - PLC CPU
TraceabilityYes
Average Life Duration20 year(s)
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
Without Single Use PlasticNo
Return IndicatorY
Package Weight Lbs158.000 g
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductEcoStruxure Automation Expert
ReturnabilityYes
Us Rated Supply Voltage224 V DC supplied by the host Altivar drive
Stocking FlagN
Data Backed Up32 MB flash memory backup of user programs
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Without Single Use PlasticNo
General Attributes
- Product Or Component Type
- processor module
Range Of ProductEcoStruxure Automation Expert
Input Attributes
- Input Output Number
- 23 discrete input/output, 7 analog input/output, 1 master encoder input
Specifications
- Country of Origin
- Philippines, United States
Batteries & Runtime Attributes
- Battery Type
- CR2032 lithium non-rechargeable 10 year(s)
