Schneider Electric XPSMCMCO0000EI Modicon MCM Expansion Module, Ethernet/IP, 24V DC, IP20, 0.3kg
- MPN: XPSMCMCO0000EI
- PPN: SCH-XPSMCMCO0000EI
CAD
$1143.72
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

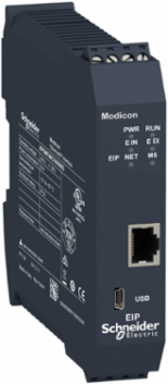

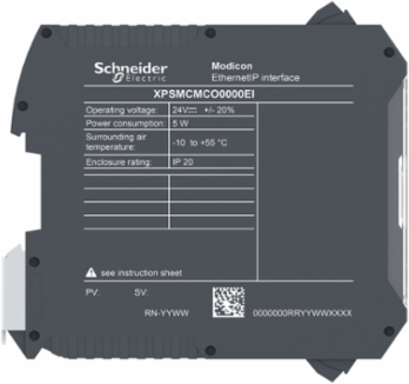

Modicon MCM Expansion Module, Ethernet/IP, 24V DC, IP20, 0.3kg
Features
- This Modicon MCM expansion module features a dedicated EtherNet/IP port, allowing for seamless integration into your existing industrial network. By enabling direct communication between your safety controller and the PLC or HMI, you can perform real-time diagnostics and remote monitoring without the cost or complexity of additional protocol converters.
- While classified as a "non-safe" module, this device acts as a high-speed data bridge that transmits critical status information, including input/output diagnostics and error codes, to your fieldbus. This allows maintenance engineers to pinpoint the exact cause of a machine stoppage such as a tripped E-stop or a misaligned guard drastically reducing Mean Time to Repair (MTTR).
- At only 22.5mm wide, this module snaps directly onto a standard 35mm DIN rail, providing a high-density solution for space-constrained panels. The modular "backplane" expansion connector allows it to link instantly with the Preventa XPSMCM master controller, eliminating tedious point-to-point wiring and speeding up the commissioning of complex safety systems.
- Designed for industrial reliability, the module features removable captive screw clamp terminals that simplify initial wiring and future maintenance. In the event of a system upgrade or hardware swap, you can disconnect the wiring harness in seconds without re-landing every individual lead, ensuring your production line returns to operation with minimal disruption.
- Fully certified by T V, RCM, and cULus, this module is built to meet the rigorous demands of global industrial environments. These certifications guarantee that your diagnostic hardware is compatible with high-integrity safety chains, ensuring your machine meets CE directives and North American workplace safety regulations for peace of mind during safety audits.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Italy, United States
Depth114.5 mm
Communications & Management Attributes
- Communication Port Protocol
- Ethernet TCP/IP
Complementary Attributes
- Maximum Cable Distance Between Devices
- 100 m
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Cable Cross Section
- 0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, without bezel0.2-2.5 mm² - 24 AWG...14 AWG solid without cable end, 0.2-1.5 mm² - 24 AWG...16 AWG flexible without cable end, 0.2-2.5 mm² - 24 AWG...14 AWG flexible without cable end, 0.25-1 mm² - 23 AWG...18 AWG flexible with cable end, without bezel0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, with bezel, 0.5-1.5 mm² - 20 AWG...16 AWG flexible with cable end, with double bezel0.2-1 mm² - 24 AWG...18 AWG solid without cable end
- Vibration Resistance
- +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1847
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Industrial
- Connector Type
- RJ45
- Device Short Name
- XPSMCM
- Electromagnetic Compatibility
- electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3
- Method Of Access
- server
- Number Of Port
- 1
- Power Dissipation In W
- 3 W
- Product Or Component Type
- non-safe communication module
- Range Of Product
- Modicon MCM
- Service Life
- 20 year(s)
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Width Nominal
- 22.5 mm
- Connections - Terminals
- 2 captive screw clamp terminals, removable terminal block
- Package Weight(Lbs)
- 235.868 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Local SignallingLED green PWR power ONLED green RUN operating, LED red E IN internal errorLED red E EX external error, LED green/red NET connection stateLED green/red STS communication status
Certificate AgencycULus, RCM, TÃœV
Local Publishable Date2025-12-03
Stocking FlagY
Device TypePLC System - PLC Component
TraceabilityYes
Average Life Duration20 year(s)
Weee Product Category5
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Labele
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Current Consumption0.125 mA
Electrical Connectionscrew terminal
Insulation250 V AC between power supply and housing IEC 61800-5-1
Mounting Supportomega 35 mm DIN rail EN 50022
Overvoltage CategoryII
Product AvailabilityStock - Normally stocked in distribution facility
Quality LabelsCE
ReturnabilityYes
Shock Resistance10 gn 16 ms) 1000 shocks on each axis IEC 61496-1
Transmission Rate10/100 Mbit/s
Height Nominal99 mm
[Us] Rated Supply Voltage24 V - 20...20 % DC
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8517620090
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-55 °C, -10-55 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ip Degree Of Protection
- IP20
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Relative Humidity
- 10-95 %
Ambient Air Temperature For Storage-20-85 °C, -20-85 °C
Reach Free ShvcYes
China Rohs RegulationX
Eu Rohs DirectiveCompliant
Operating Altitude6561.68 ft (2000 m)
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- non-safe communication module
Range Of ProductModicon MCM
ETIM
- ETIM 8
