Tripp Lite SRW10USG 10U Low-Profile Wall-Mount Rack Enclosure Cabinet, 20.5 Inch Deep, Black
- MPN: SRW10USG
- UPC: 037332187345
- PPN: TRP-SRW10USG
CAD
$1012.30
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

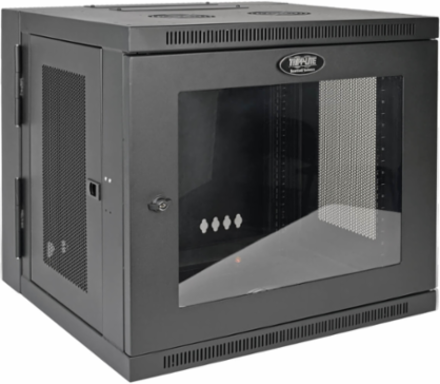

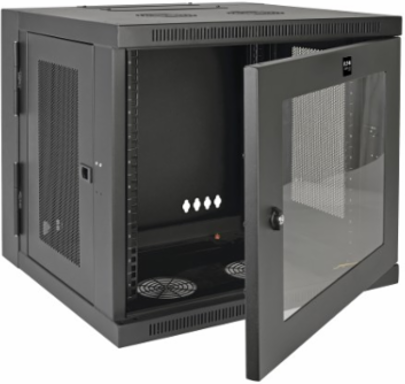

Wall-mount cabinet secures and organizes 10U of 19-inch rack equipment up to 20.5 inches deep in locations with limited floor space. Clear acrylic window allows you to monitor equipment without unlocking door.
Features
- Maximum load capacity of 200 lb.
- Swings away from wall on hinge for easy back-door access

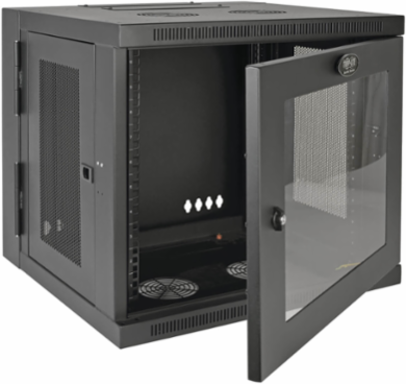

- Front door includes shatter-resistant clear acrylic window

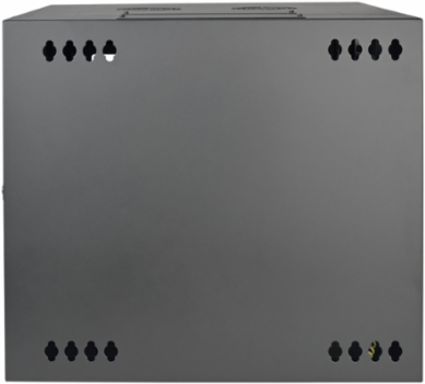

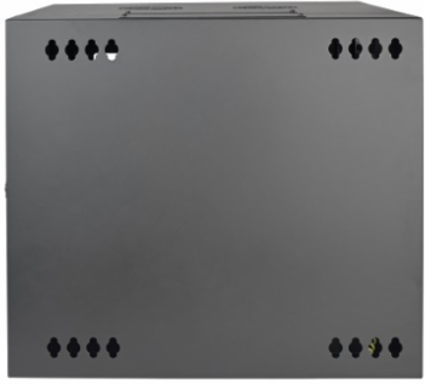

- Locking steel cabinet vented at sides, top and bottom
- Secures 10U of 19 in. rack equipment up to 20.5 in. deep
- 5-year limited warranty
Documentation & Downloads
Specifications
Additional
- Load Capacity
- 200 lb.
- Maximum Device Depth
- 20.5 in.
- Unit Dimensions
- 21.56 x 23.63 x 21.63 in.
- Unit Weight
- 53.4 lbs
- Material
- Steel
- Door Window Material
- Clear acrylic
- Mounting Type
- Wall-mount or optional rolling caster kit

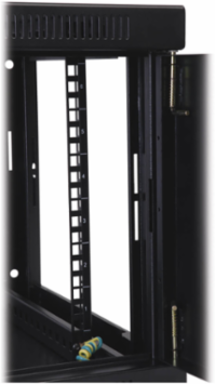

- Vertical Rail Adjustment Increment
- 7/8 in.
- Ventilation
- Vented panels on sides, top and bottom
- Grounding Lug
- Front and Back door frames
- Rack Depth
- Shallow
- Approvals
- UL/CSA 60950-1, EIA-310-D, IEC 60297-3-100, IP20, RoHS
- Warranty
- 5-year limited
Minimum Device Depth3 in.
Rack Height10U
Shipping Dimensions24.25 x 26.38 x 24.13 in.
ColorBlack
FinishBlack powder-coated
Door TypeHinged, reversible (180° rotation)

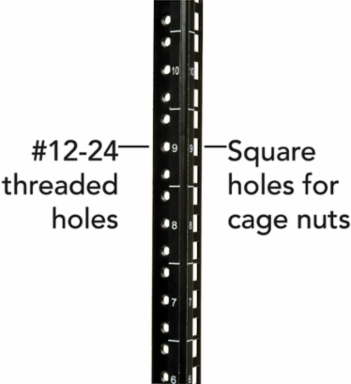

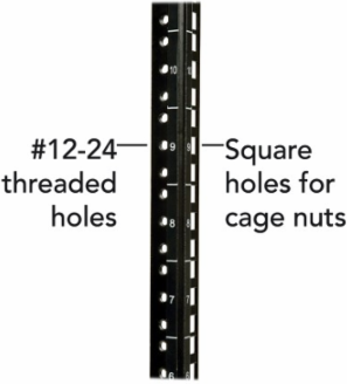

Mounting Hole ThreadSquare-hole or 12-24 threaded-hole
Cable Routing PortsTop and bottom, removable covers
SecurityLocking doors and side panels
Rack TypeEnclosure
Factory Preset Rack Depth10.42 in.
UPC Code037332187345
