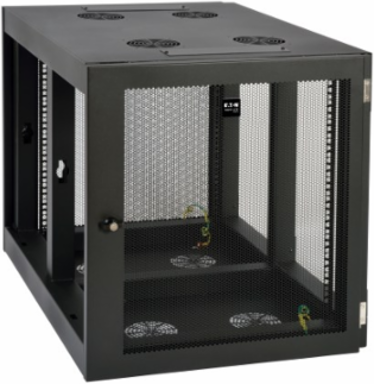

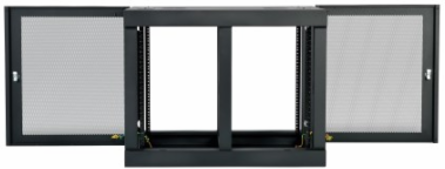

Tripp Lite SRW12UHD 12U Low-Profile Wall-Mount Rack Enclosure, Max Depth 32.5 Inch, 500 lb Capacity
- MPN: SRW12UHD
- UPC: 037332183323
- PPN: TRP-SRW12UHD
CAD
$1395.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

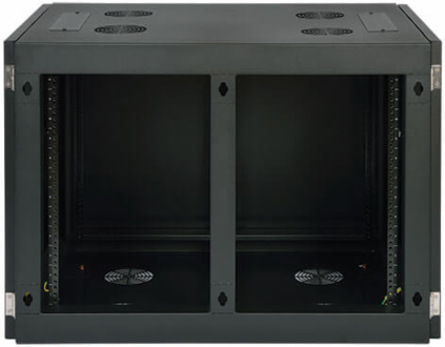

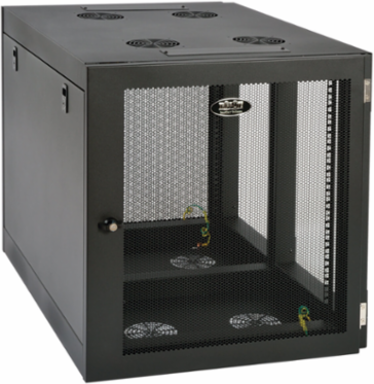

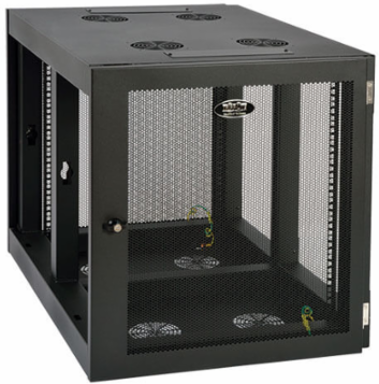

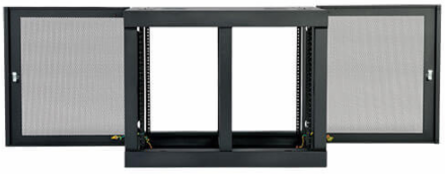

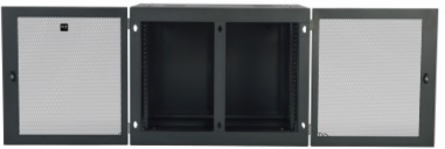

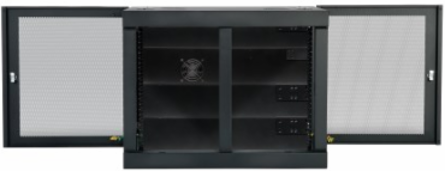

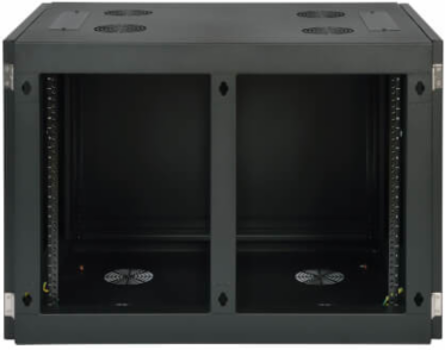

Wall-mount cabinet secures and organizes 12U of 19-inch rack equipment in network wiring closets and other locations with limited floor space. Houses servers up to 32.5 inches deep, but extends less than 25 inches from wall.
Features
- Maximum load capacity of 500 lb.
- Locking steel cabinet vented at sides, top and bottom
- Flow-through ventilation keeps equipment cool
- Secures 12U of 19 in. rack equipment up to 32.5 in. deep
- 5-year limited warranty
Documentation & Downloads
Specifications
Additional
- Maximum Device Depth
- 32.5 in
- Minimum Device Depth
- 3 in
- Unit Dimensions (H x W x D)
- 26.46 x 36.2 x 24.77 in
- Rack Depth
- Mid
- Mounting Style
- Wall-Mount
- Vertical Mounting Rail Adjustment
- 7/8 in increments
- Color
- Black
- Finish
- Black powder-coated
- Rack Type
- Enclosure
- Certifications
- EIA-310-E, RoHS, PCI DSS
Maximum Load Capacity500 lb
Rack Height12U
Unit Weight101.4 lb
Rack Equipment Width Standard19 in

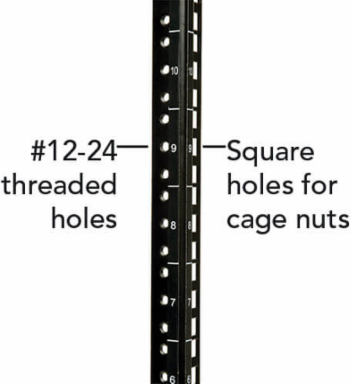

Mounting Hole TypesSquare holes, 12-24 threaded holes
Mounting Hole Spacing16 in apart
MaterialHeavy-duty steel
VentilationVented sides, top and bottom
Protection RatingIP20
Product Warranty Period5-year limited
