Tripp Lite SRW12U 12U Low-Profile Wall-Mount Rack Enclosure Cabinet, Max Depth 16.5 Inch, 200 lb Capacity
- MPN: SRW12U
- UPC: 037332174451
- PPN: TRP-SRW12U
CAD
$796.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

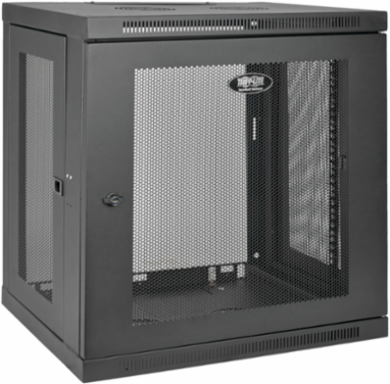

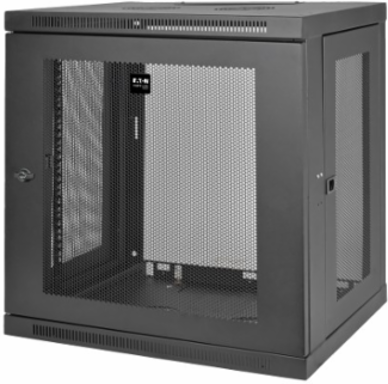

Wall-mount cabinet secures and organizes 12U of 19-inch rack equipment in network closets, classrooms and other locations with limited floor space. Houses network switches and patch panels up to 16.5 inches deep.
Features
- Maximum load capacity of 200 lb.
- Locking steel cabinet vented at sides, front, top and bottom
- Flow-through ventilation keeps equipment cool
- Secures 12U of 19 in. rack equipment up to 16.5 in. deep
- Mounts to wall or rolls on floor (with optional SRCASTER)
- 5-year limited warranty
Documentation & Downloads
Specifications
Additional
- Maximum Device Depth
- 16.5 in
- Rack Height
- 12U
- Unit Dimensions (H x W x D)
- 25.08 x 23.63 x 17.69 in
- Rack Depth
- Shallow
- Mounting Hole Spacing
- 16 in apart

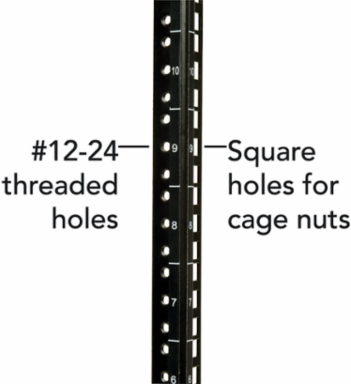

- Mounting Hole Types
- Square-hole, 12-24 threaded-hole
- Material
- Steel
- Security Features

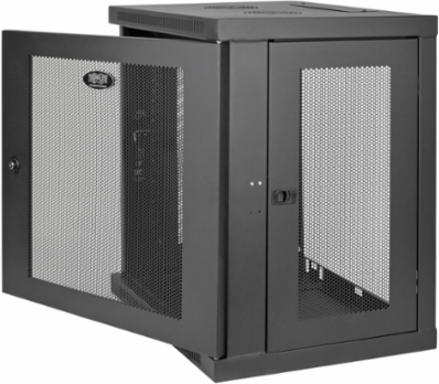

- Locking side panels and reversible front door
- Approval / Certifications
- UL/CSA 60950-1, EIA-310-E, IP20, RoHS
- Color
- Black
Weight Capacity - Stationary200 lb
Minimum Device Depth3 in
Unit Weight48.5 lb
Mounting TypeWall-mount, optional caster kit for floor rolling
Vertical Mounting Rails Adjustment7/8 in increments
Cable Access Hole Size9.812 x 2.35 in (L x W)
FinishBlack powder-coated
Grounding LugFront and back door frames
CompliancePCI DSS
Product Warranty Period5-year limited warranty
