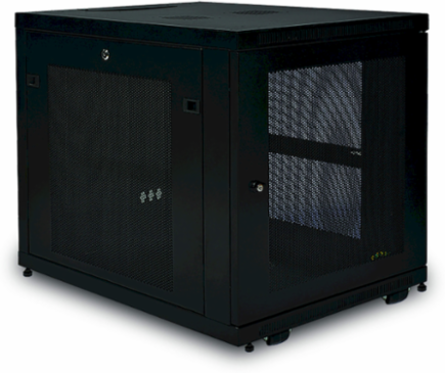

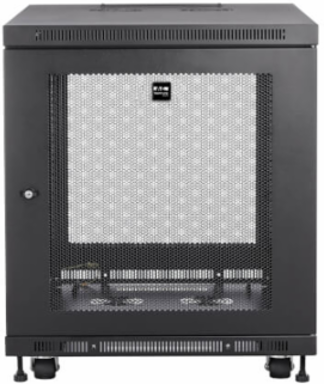

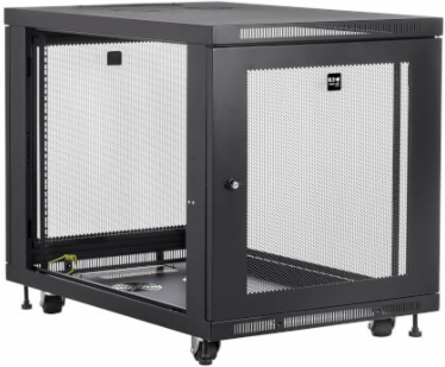

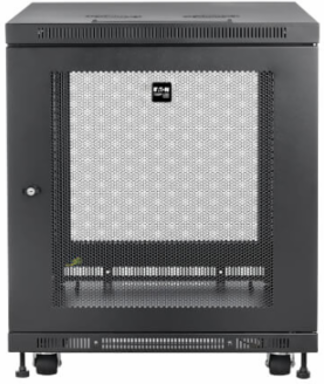

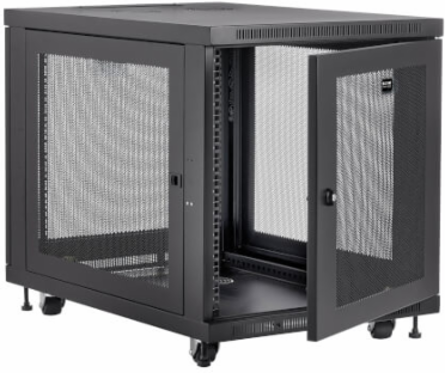

Tripp Lite SR12UB 12U Mid-Depth Rack Enclosure Cabinet, 1,000 lb Load Capacity, 32.5 Inch Max Depth
- MPN: SR12UB
- UPC: 037332157911
- PPN: TRP-SR12UB
CAD
$1352.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Ideal for data centers and IT environments that need a secure, mid-depth and heavy-duty rack enclosure cabinet capable of supporting up to 1,000 lbs. of equipment in a full 12U of rack space.
Features
- Premium SmartRack mid-depth enclosure cabinet
- 12U of rack space; 1,000-lb. load capacity
- Depth of 33" allow for standard server installation

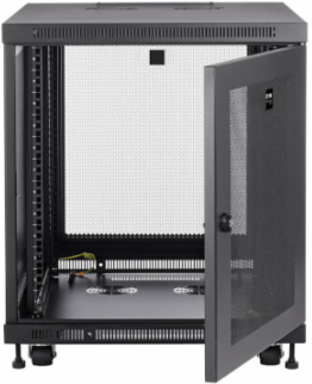

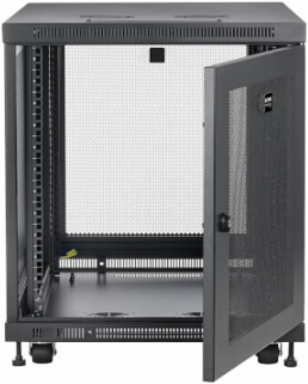

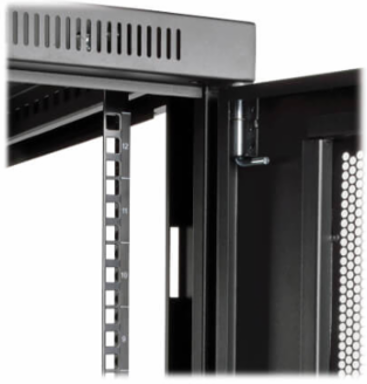

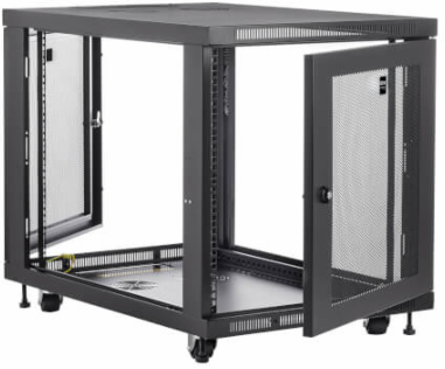

- Locking, reversible front/rear doors and locking, removable side panels

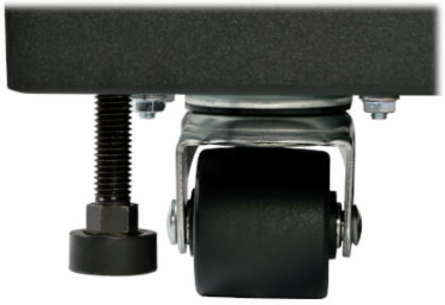

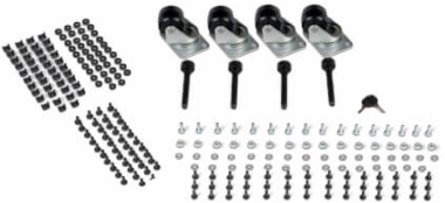

- Casters and leveling feet
- Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) compliance
- 5-year limited warranty
- Simple Installation
- Secure Equipment Access
- Convection Cooling

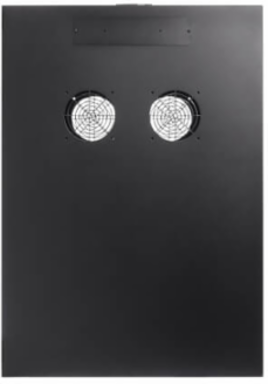

- Vented Top and Bottom Panels with Cable Cutouts
- Casters for Mobility
Documentation & Downloads
Specifications
Additional
- Load Capacity
- 1,000 lbs
- Weight Capacity - Stationary
- 1,000 lbs
- Maximum Device Depth
- 32.5 in
- Factory Preset Rack Depth
- 28.31 in
- Unit Dimensions (H x W x D)
- 25.1 x 23.63 x 33.5 in
- Shipping Dimensions (H x W x D)
- 31 x 37 x 27 in
- Rack Type
- Enclosure
- Grounding Lug
- Front and Back door frames
- Approvals
- EIA/ECA-310-E
Weight Capacity - Rolling1,000 lbs
Rack Height12U
Minimum Device Depth3 in
Rack DepthMid
Unit Weight105 lbs
Shipping Weight112 lbs
Cable Access Hole Size9.812 x 2.35 in
CertificationsRoHS, UL/CSA 60950-1, IP20
ColorBlack
