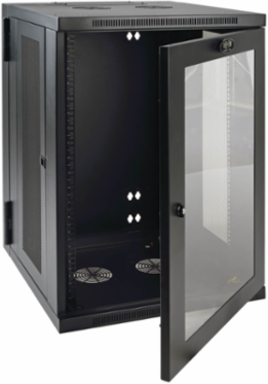

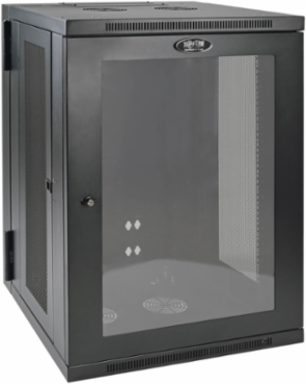

Tripp Lite SRW18USG 18U Wall-Mount Rack Enclosure Cabinet, 20.5 Inch Depth, Black
- MPN: SRW18USG
- UPC: 037332187376
- PPN: TRP-SRW18USG
CAD
$1651.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Wall-mount cabinet secures and organizes 18U of 19-inch rack equipment in network closets, classrooms and other locations with limited floor space. Clear acrylic window allows you to monitor equipment without unlocking door.
Features
- Maximum load capacity of 250 lb.
- Swings away from wall bracket on a hinge for easy access
- Front door includes shatter-resistant clear acrylic window
- Locking steel cabinet vented at sides, top and bottom
- Secures 18U of 19 in. rack equipment up to 20.5 in. deep
- 5-year limited warranty
Documentation & Downloads
Specifications
Additional
| Rack Height | 18U |
|---|---|
| Maximum Device Depth | 20.5 in. |
| Unit Dimensions (H x W x D) | 35.6 x 23.62 x 21.6 in. |
| Rack Depth | Shallow |
| Shipping Dimensions (H x W x D) | 41 x 27 x 24 in. |
| Material | Steel |
| Color | Black |
| Rack Type | Enclosure |
| Mounting Hole Spacing | 16 in. |
| Mounting Rail Support | Square-hole or 12-24 threaded-hole mounting |
| Door Swing | Reversible hinge; swings left or right |
| Cable Routing | Ports with removable covers at top and bottom |
| Approvals | UL/CSA 60950-1, EIA-310-D, IEC 60297-3-100, IP20, RoHS |
| Warranty | 5-year limited |
| Load Capacity | 250 lb. |
|---|---|
| Minimum Device Depth | 3 in. |
| Unit Weight | 96 lb. |
| Factory Preset Rack Depth | 10.42 in. |
| Shipping Weight | 117 lb. |
| Finish | Black powder-coated |
| Grounding Lug | Front and Back door frames |
| Mounting Type | Wall-mount |
| Vertical Rail Adjustment | 7/8 in. increments |
| Front Door Window | Shatter-resistant clear acrylic |
| Locking | Locks on side panels and front door |
| Ventilation | Vented panels at sides, top, and bottom |
| Compliance | PCI DSS |
