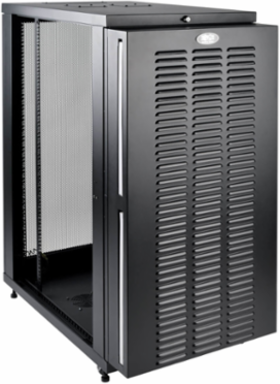

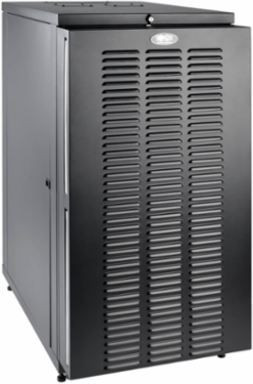

Tripp Lite SR24UBFFD 24U Rack Enclosure Cabinet, 1000 lb Capacity, 3 to 32.5 Inch Depth, IP54 Rated
- MPN: SR24UBFFD
- UPC: 037332188786
- PPN: TRP-SR24UBFFD
CAD
$2774.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Ideal storage for sensitive rack-mounted equipment that needs extra protection from harsh conditions. Perfect for factories, construction areas, warehouses and other areas high in moisture, dust and debris. Fully compliant with IP54 standards.
Features
- Supports a maximum load capacity of 1000 lb.

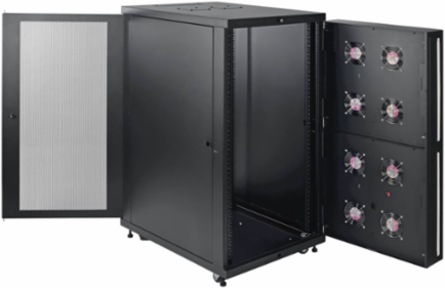

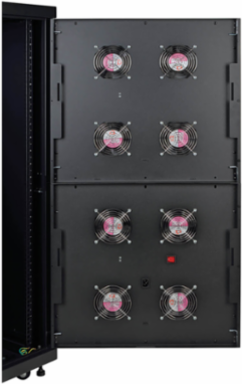

- 8 high-performance fans keep equipment cool

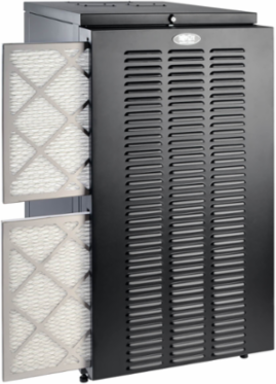

- Built-in dust filters protect interior from airborne particles
- Louvered door keeps out drips, splashes and falling debris
- Adjustable mounting rails house equipment from 3 to 32.5 in. deep
- 2-year limited warranty
Documentation & Downloads
Specifications
Additional
| Rack Height | 24U |
|---|---|
| Supported Equipment Depth | 3 to 32.5 in |
| Input Plug Type | NEMA 5-15P |
| Unit Dimensions (H x W x D) | 46.8 x 23.6 x 38.5 in |
| Rack Type | Enclosure |
| Mounting Rail Depth Adjustment | 3 to 32.5 in |

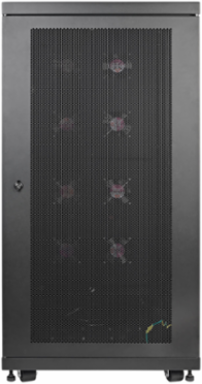

| Door Type | Louvered front, reversible front and rear |

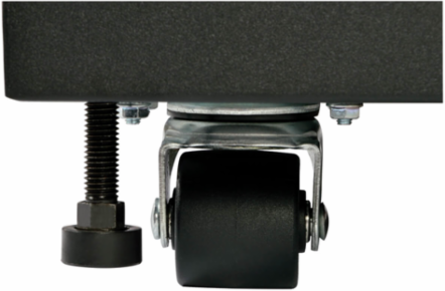

| Casters | 4 removable |
| Material | Steel |
| Grounding Lug | Front and back door frames |
| Compliance | EIA-310-E, IEC 60297-3-100, IP54, RoHS |
| Dust Filters | Built-in, removable, replaceable, size 20 x 24 x 1 in. |
| Cable Routing Ports | Dust- and drip-resistant top and bottom ports with removable covers |
| Maximum Load Capacity | 1000 lb |
|---|---|
| Input Voltage | 120V AC, 50/60 Hz |
| Input Cord Length | 10 ft |
| Weight | 209.43 lbs |
| Rack Depth | Mid |
| Factory Preset Rack Depth | 10.42 in |
| Mounting Rails | Adjustable, front and rear, support square-hole mounting |
| Leveling Feet | 4 |
| Finish | Black powder-coat |
| Protection Rating | IP54 |
| Built-in Cable Management | Yes |
| Fan Count | 8 high-performance |
| UPC Code | 037332188786 |
