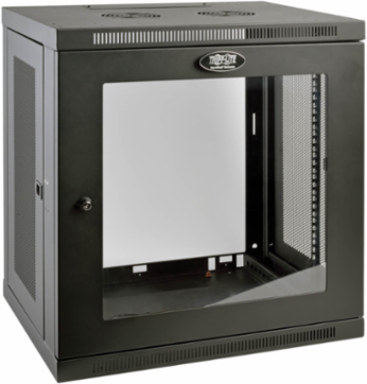

Tripp Lite SRW12UG 12U Low-Profile Wall-Mount Rack Enclosure Cabinet, Maximum Depth 16.5 Inch
- MPN: SRW12UG
- UPC: 037332187307
- PPN: TRP-SRW12UG
CAD
$815.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Wall-mount cabinet secures and organizes 12U of 19-inch rack equipment up to 16.5 inches deep in locations with limited floor space. Clear acrylic window allows you to monitor equipment without unlocking door.
Features
- Maximum load capacity of 200 lb.

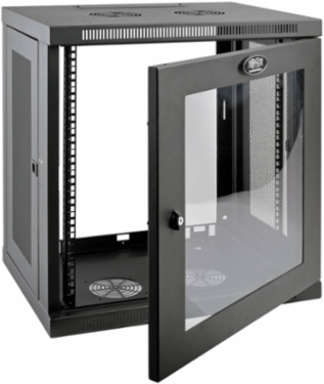

- Front door includes shatter-resistant clear acrylic window
- Locking steel cabinet vented at sides, top and bottom
- Secures 12U of 19 in. rack equipment up to 16.5 in. deep
- Mounts to wall or rolls on floor (with optional SRCASTER)
- 5-year limited warranty
Documentation & Downloads
Specifications
Additional
- Load Capacity
- 200 lb
- Maximum Device Depth
- 16.5 in
- Rack Type
- Enclosure
- Dimensions (H x W x D)
- 25.08 x 23.63 x 17.69 in
- Mounting
- Wall-mount, optional rolling caster kit
- Mounting Hole Type
- Square-hole and 12-24 threaded
- Finish
- Black powder-coated
- Certifications
- UL/CSA 60950-1, EIA-310-E; IP20 Protection Rating, RoHS
- Front Door
- Shatter-resistant clear acrylic window
- Ventilation
- Vented top, bottom, and removable side panels
- Cable Management
- Top and bottom ports with removable covers
- Warranty
- 5-year limited warranty
Rack Height12U
Rack DepthShallow
Weight48.5 lbs
Cable Access Hole Size9.812 x 2.35 in (L x W)
Mounting Rail AdjustmentAdjusts in 7/8 in increments
MaterialSteel
ColorBlack
Grounding LugFront and Back door frames
Door OpeningReversible, opens left or right (cabinet rotates 180° before mounting)
Rack Space NumberingNumbered for easy reference
Security FeaturesLocking side panels and front door, PCI DSS compliant
