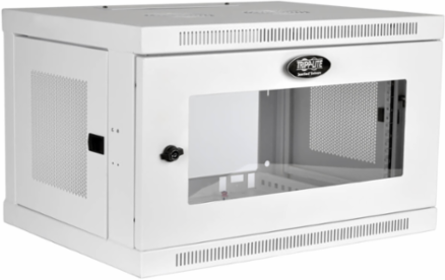

Tripp Lite SRW6UWG 6U Low-Profile Wall-Mount Rack Enclosure Cabinet, Maximum Depth 16.5 Inch, White
- MPN: SRW6UWG
- UPC: 037332187284
- PPN: TRP-SRW6UWG
CAD
$524.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Wall-mount cabinet secures and organizes 6U of 19-inch rack equipment in network closets, classrooms and other locations with limited floor space. Clear acrylic window allows you to monitor equipment without unlocking door.
Features
- Maximum load capacity of 200 lb.

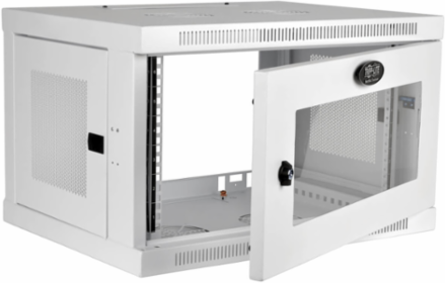

- Front door includes shatter-resistant clear acrylic window
- Locking steel cabinet vented at sides, top and bottom
- Secures 6U of 19 in. rack equipment up to 16.5 in. deep
- Mounts to wall or rolls on floor (with optional SRCASTER)
- 5-year limited warranty
Documentation & Downloads
Specifications
Additional
| Load Capacity | 200 lb |
|---|---|
| Minimum Device Depth | 3 in |
| Unit Dimensions (H x W x D) | 14.5 x 23.5 x 17.5 in |
| Rack Depth | Shallow |
| Vertical Rail Adjustment Increment | 7/8 in |
| Grounding Lug | Front and Back door frames |

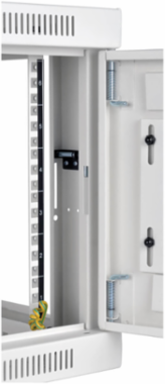

| Door | Reversible front door (left or right opening) |
| Finish | White powder-coated |
| Lock Type | Front door and side panels lockable |
| Ventilation | Vented panels on sides, top and bottom |
| Ingress Rating | IP20 |
| Approvals | RoHS |
| Warranty | 5-year limited |
| Maximum Device Depth | 16.5 in |
|---|---|
| Rack Height | 6U |
| Unit Weight | 29 lb |
| Mounting Hole Spacing | 16 in |
| Cable Access Hole Size | 9.812 x 2.35 in (l x w) |
| Enclosure Type | Wall-mount |
| Material | Steel |
| Door Window Material | Clear acrylic |
| Rack Mounting Hole Type | Square-hole or 12-24 threaded-hole |
| Color | White |
| Certifications | UL/CSA 60950-1, EIA-310-E |
| Compliance | PCI DSS |
