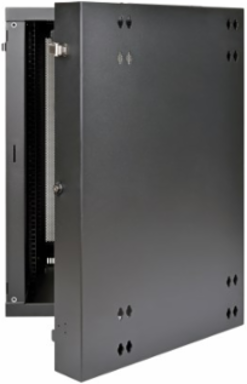

Tripp Lite SRW18USDP 18U Wall-Mount Rack Enclosure Cabinet, Secures Equipment Up to 24.5 Inch Deep
- MPN: SRW18USDP
- UPC: 037332189707
- PPN: TRP-SRW18USDP
CAD
$1903.10
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

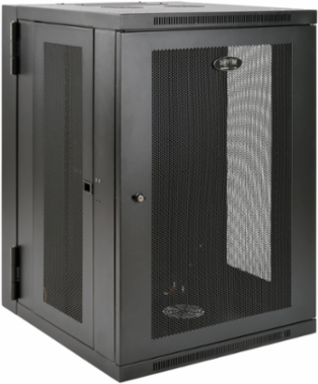

Wall-mount cabinet secures and organizes 18U of 19-inch rack equipment in network closets and other locations with limited floor space. Houses UPS systems and related battery packs and cabling up to 24.5 inches deep.
Features
- Maximum load capacity of 250 lb.

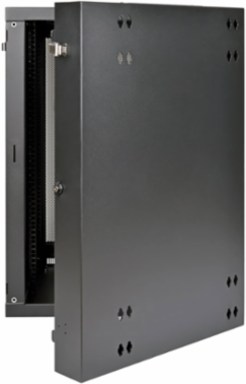

- Swings away from wall on hinge for easy back-door access

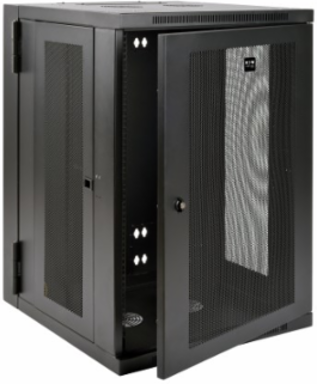

- Locking steel cabinet vented at sides, front, top and bottom
- Flow-through ventilation keeps equipment cool
- Secures 18U of 19 in. rack equipment up to 24.5 in. deep
- 5-year limited warranty
Documentation & Downloads
Specifications
Additional
- Rack Height
- 18U
- Equipment Depth Capacity
- 24.5 in
- Unit Weight
- 100.9 lb

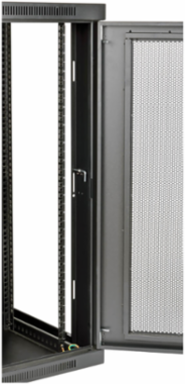

- Door Opening
- 180 reversible left or right

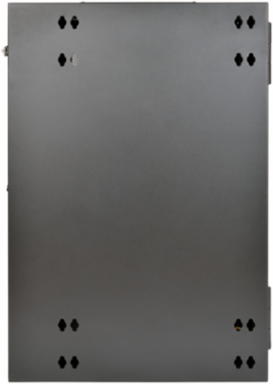

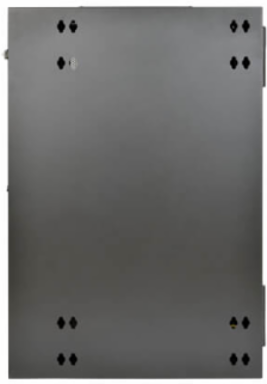

- Wall-mount Hole Spacing
- 16 in
- Finish
- Black powder-coated
- Mounting Hole Support
- Square-hole or 12-24 threaded-hole
- Ventilation
- Flow-through vents top, bottom, front, sides
- Grounding Lug Location
- Front and back door frames
- Warranty
- 5-year limited
Maximum Load Capacity250 lb
Unit Dimensions (HxWxD)35.61 x 23.5 x 25.98 in
Rack Width Standard19 in
Cable Access Hole Size9.812 x 2.35 in
MaterialSteel
Mounting TypeWall-mount, optional caster kit for mobile use
Rail Adjustment Increment7/8 in
SecurityLocking doors and side panels
CompliancePCI DSS, EIA-310-D, IEC 60297-3-100, IP20 Protection Rating, RoHS
ColorBlack
