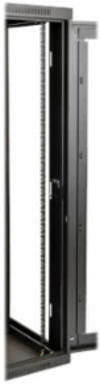

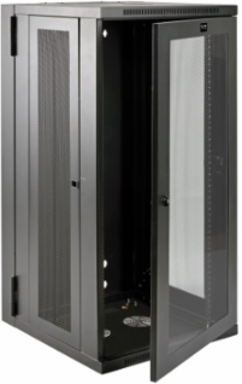

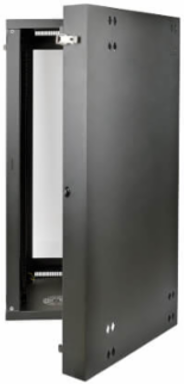

Tripp Lite SRW26USDPG 26U Wall-Mount Rack Enclosure Cabinet, Max Depth 24.5 Inch, 250 lb Capacity
- MPN: SRW26USDPG
- UPC: 037332189745
- PPN: TRP-SRW26USDPG
CAD
$2704.75
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

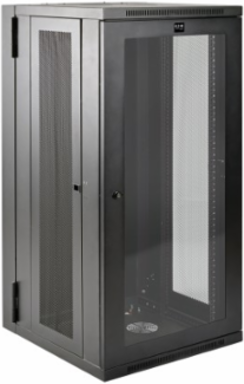

SmartRack 26U UPS-Depth Wall-Mount Half-Height Rack Enclosure, Clear Acrylic Window, Hinged Back
Features

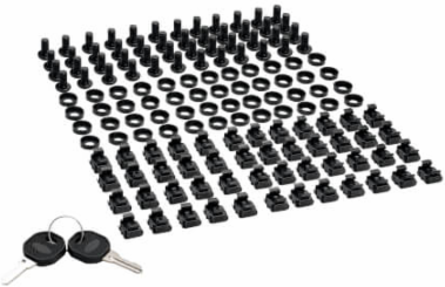

- (48) M6 screws
- (48) M6 cage nuts
- (48) M6 washers
- (48) 12-24 screws
- (2) Keys
- Owner's manual
Documentation & Downloads
Specifications
Additional
| Maximum Device Depth | 24.5 in |
|---|---|
| Rack Height | 26U |
| Rack Depth | Shallow |
| Unit Weight | 123.7 lb |
| Shipping Weight | 158 lb |
| Mounting Type | Wall-mount |
| Mounting Holes | Square and 12-24 threaded |
| Vertical Mounting Rail Adjustment | 7/8 in increments |
| Material | Steel |
| Color | Black |
| Door Type | Hinged, reversible (180° rotation) |
| Security Features | Locking doors and side panels, grounding lug on front and back door frames |
| Grounding Lug | Front and Back door frames |
| UPC Code | 037332189745 |
| Weight Capacity - Stationary | 250 lb |
|---|---|
| Minimum Device Depth | 3 in |
| Factory Preset Rack Depth | 11.42 in |
| Unit Dimensions (H x W x D) | 49.63 x 23.62 x 25.51 in |
| Shipping Dimensions (H x W x D) | 55.12 x 27.95 x 29.92 in |
| Cable Access Hole Measurement | 9.812 x 2.35 in (l x w) |
| Mounting Hole Spacing | 16 in apart for standard wall stud |
| Rack Equipment Standard | EIA-310-D, IEC 60297-3-100, 19 in standard |
| Finish | Black powder-coated |
| Front Door Window | Clear acrylic, shatter-resistant |
| Ventilation | Vented panels at sides, top and bottom |
| Compliance | PCI DSS, RoHS, IP20 Protection Rating |
| Product Warranty Period | 5-year limited warranty |
