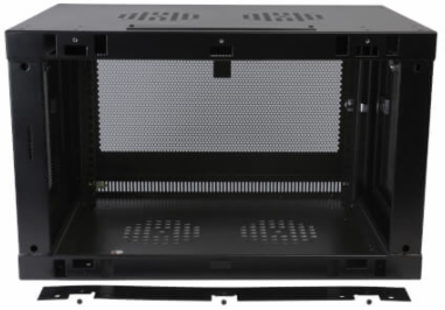

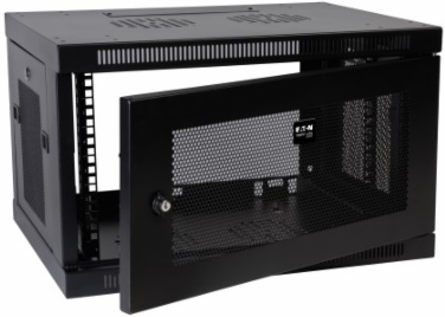

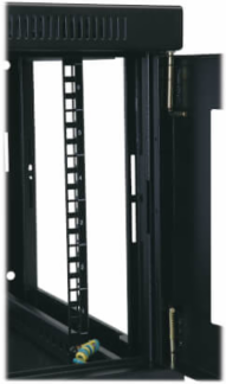

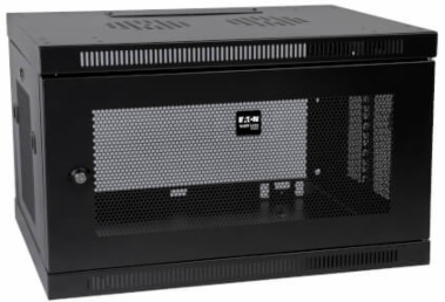

Tripp Lite SRW6U 6U Low-Profile Wall-Mount Rack Enclosure Cabinet, 16.5 Inch Depth, 200 lbs Load Capacity
- MPN: SRW6U
- UPC: 037332154651
- PPN: TRP-SRW6U
CAD
$473.36
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
SmartRack 6U Low-Profile Switch-Depth Wall-Mount Mini Rack Enclosure
Features
- Mounting hardware
- (12) M6 screws
- (12) M6 cage nuts
- (12) M6 cup washers
- (2) Keys
- Owner's manual
Documentation & Downloads
Specifications
Additional
- Load Rating
- 200 lb
- Minimum Device Depth
- 3 in
- Rack Depth
- Shallow
- Dimensions (H x W x D)
- 14.5 x 23.63 x 17.5 in
- Mounting Type
- Wall-mount, optional caster for rolling
- Mounting Hole Types
- Square-hole, 12-24 threaded-hole
- Cable Access Hole Size
- 9.812 x 2.35 in
- Finish
- Black powder-coated
- Ventilation
- Vented panels front, sides, top, bottom
- Grounding Lug
- Front and Back door frames
- Protection Rating
- IP20
- Warranty
- 5-year limited
Maximum Device Depth16.5 in
Rack Height6U
Rack TypeEnclosure
Weight29 lb
Mounting Rail Adjustment7/8 in increments
Wall Mount Hole Spacing16 in
MaterialSteel
DoorReversible front door (opens left or right by rotating cabinet 180 )
Security FeaturesLocking front and side panels with keys
ColorBlack
CertificationsUL/CSA 60950-1, EIA-310-E, RoHS
