Tripp Lite SRW6UW 6U Low-Profile Wall-Mount Rack Enclosure Cabinet, 200 lb Capacity, 16.5 Inch Depth
- MPN: SRW6UW
- UPC: 037332178930
- PPN: TRP-SRW6UW
CAD
$476.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

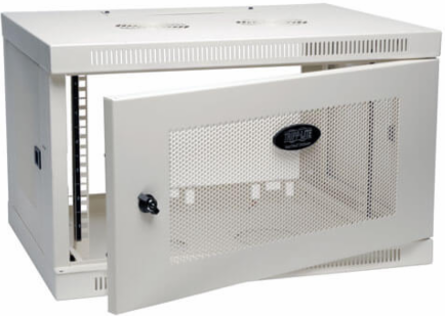

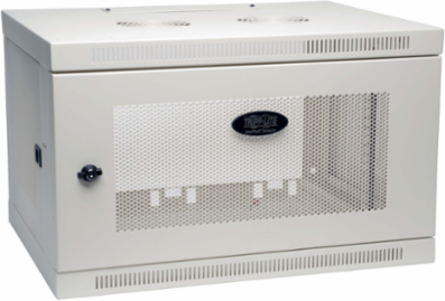

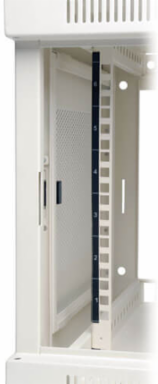

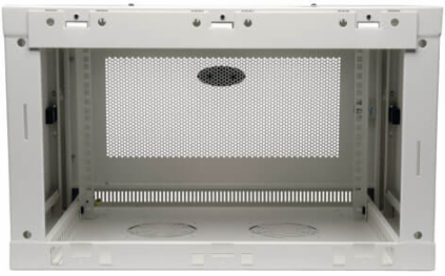

Wall-mount cabinet secures and organizes 6U of 19-inch rack equipment in network closets, classrooms and other locations with limited floor space. Houses network switches and patch panels up to 16.5 inches deep.
Features
- Maximum load capacity of 200 lb.
- Locking steel cabinet vented at sides, front, top and bottom
- Flow-through ventilation keeps equipment cool
- Secures 6U of 19 in. rack equipment up to 16.5 in. deep
- Mounts to wall or rolls on floor (with optional SRCASTER)
- 5-year limited warranty
Documentation & Downloads
Specifications
Additional
| Weight Capacity | 200 lb |
|---|---|
| Maximum Device Depth | 16.5 in. |
| Rack Height | 6U |
| Mounting | Wall-mount, optional rolling caster |
| Mounting Rail Adjustment Increment | 7/8 in |
| Rack Equipment Width Standard | 19 in |
| Ventilation | Vented panels on sides, front, top and bottom |
| Color | White |
| Finish | Powder-coated |
| Security Features | Locking side panels and front door |
| Minimum Device Depth | 3 in. |
|---|---|
| Rack Depth | Shallow |
| Weight | 29 lb |
| Cable Access Hole Size | 9.812 x 2.35 in |

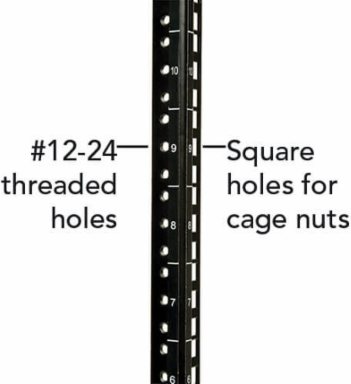

| Mounting Rail Hole Type | Square-hole or 12-24 threaded-hole |
| Unit Dimensions (HxWxD) | 14.5 x 23.5 x 17.5 in |
| Door Style | Reversible front door, opens left or right |
| Material | Steel |
| Compliance | UL/CSA 60950-1, EIA-310-E, RoHS, IP20 |
| Grounding Lug | Front and back door frames |
