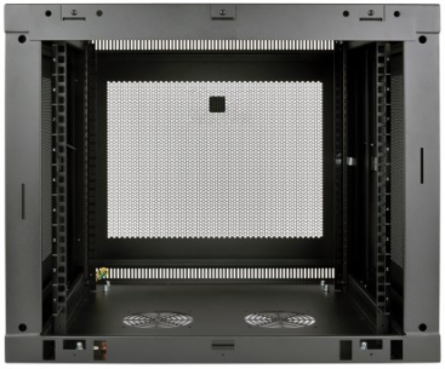

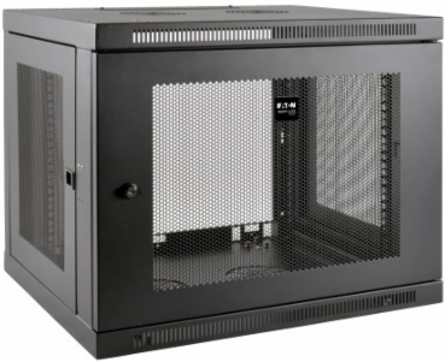

Tripp Lite SRW9UDP 9U Low-Profile Wall-Mount Rack Enclosure Cabinet, 200 lb Capacity, 20.5 Inch Depth
- MPN: SRW9UDP
- UPC: 037332191465
- PPN: TRP-SRW9UDP
CAD
$800.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
SmartRack 9U Low-Profile Switch-Depth-Plus Wall-Mount Mini Rack Enclosure
Features

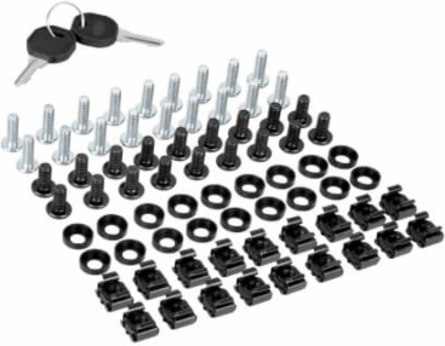

- Removable mounting plate
- (18) M6 screws
- (18) M6 cage nuts
- (18) M6 cup washers
- (18) 18-24 screws
- (3) Mounting plate screws
- (2) Keys
- Owner's manual
Documentation & Downloads
Specifications
Additional
| Weight Capacity - Stationary | 200 lb. |
|---|---|
| Minimum Device Depth | 3 in. |
| Unit Dimensions (HxWxD) | 19.83 x 23.62 x 21.71 in. |
| Unit Weight | 51.8 lb. |
| Rack Type | Enclosure |
| Mounting Hole Type | Square-hole, 12-24 threaded-hole |
| Vertical Mounting Rail Adjustment | 7/8 in. increments |
| Cable Access Hole Measurement | 9.812 x 2.35 in. |
| Certifications | EIA-310-E; IP20 Protection Rating |
| Protection Rating | IP20 |
| Material | Heavy-duty steel |
| Ventilation | Vented panels front, top, bottom, and sides with flow-through ventilation |
| Cable Routing | Ports with removable covers at top and bottom |
| Warranty | 5-year limited |
| Maximum Device Depth | 20.5 in. |
|---|---|
| Rack Height | 9U |
| Shipping Dimensions (HxWxD) | 24.41 x 28.75 x 26.57 in. |
| Shipping Weight | 49 lb. |
| Rack Depth | Shallow |
| Mounting Hole Spacing | 16 in. |
| Number of Vertical Mounting Rails | 4 |
| Grounding Lug | Front and Back door frames |
| Compliance | RoHS |
| Approvals | RoHS |
| Finish | Black powder-coated |

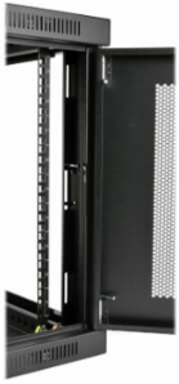

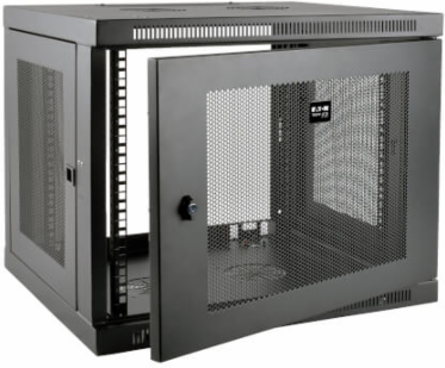

| Door | Reversible front door opens left or right |
| Color | Black |
