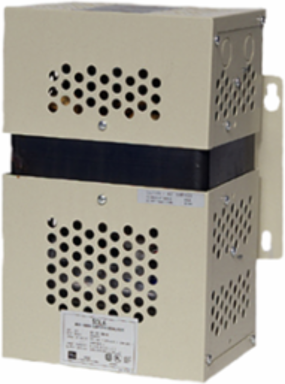

SolarHD 23232208 Hardwired Constant Voltage Transformer 30 VA-7.5 kVA, ±1% Regulation, 120/240 Vac
SolarHD 23232208 Hardwired Constant Voltage Transformer 30 VA-7.5 kVA, ±1% Regulation, 120/240 Vac
- MPN: 23232208
- PPN: SHD-23232208
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
Superior voltage regulation of ±1 percent sets the CVS Hardwired Constant Voltage Transformers apart from other power conditioning technologies on the market. No other power conditioning technology is as effective against power quality disturbances including impulses, swells, sags, brownouts and waveform distortion. The CVS is ideal for applications where even a small change in voltage levels can lead to unscheduled downtime, equipment malfunction, incorrect data or scrapped production.
Features
- cULus, RoHS
- Superior voltage regulation of ±1%
- Surge protection tested to ANSI/IEEE C62.41, Class A & B waveform
- Harmonic filtering
- Hardwired
- Acts as a step-up/step-down transformer
- Galvanic isolation provides exceptional circuit protection
- 25 year typical mean time between failure
- No maintenance required
Specifications
Specifications
- Efficiency
- At Full Load: Up to 92%
- Input Voltage Range
- 120, 208, 240, 480 Vac
- Number of Phases
- Single Phase
- Output Voltage Range
- 120, 240 Vac
Hertz60 Hz
KVA Rating30 VA-7.5 kVA
Operating Temperature-20°C to +50°C
Overload CapabilityCurrent limited at 1.65 times rated current
