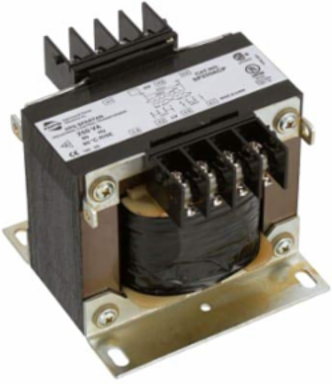

Hammond Power Solutions SP500PR Spartan Open Core & Coil Control Transformer 500VA 120x240V→12x24V 50/60Hz
- MPN: SP500PR
- UPC: 803423098988
- PPN: HPS-SP500PR
CAD
$174.65
/ EA
Available to Order from Manufacturer
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
HPS Spartan industrial open core-and-coil control transformer. Rated 500 VA. Primary voltage 120x240, 115x230, 110x220 V; secondary voltage 12x24, 11.5x12, 11x22 V; 50/60 Hz. Output current 41.7/20.8 A. Approximate shipping weight 11.0 lb.
Features
- Open core-and-coil construction for industrial control circuits
- High inrush capacity for solenoid and contactor loads
Documentation & Downloads
Specifications
Additional
| VA Rating | 500 VA |
|---|---|
| Frequency | 50/60 Hz |
| Secondary Voltage | 12 x 24 V |
| Mounting Centers | 3.78 x 3.66 in |
| Height with Finger Guard | 4.16 |
| Mounting | Bolt-on mounting brackets |
| Insulation System | 80°C rise, 130°C class B |
| Certifications | CSA Certified, UL Listed, CE Marked, RoHS Compliant |
| Output Amps | 41.7/20.8 A |
|---|---|
| Primary Voltage | 120 x 240 V |
| Overall Dimensions | 4.49 x 5.47 x 3.78 in |
| Mounting Slot | 0.31 x 0.81 in |
| Height with Fuse Block Adapter | 3.97 in |
| Material | Copper wound coils |
| Core Construction | Bolted core |
