SolarHD

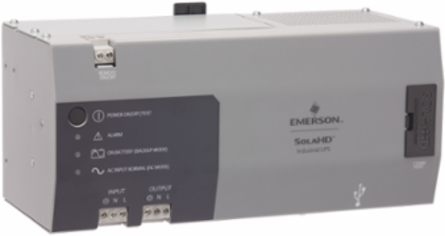

SolarHD SDUPMBRK AC DIN Rail UPS 500VA/850VA Compact Design, 120/230 Vac Output

AC DIN Rail UPS 500VA/850VA Compact Design, 120/230 Vac Output
AC DIN Rail UPS 500VA/850VA Compact Design, 120/230 Vac Output
  • MPN: SDUPMBRK
  • PPN: SHD-SDUPMBRK

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$52.12/ EA

Description

The SDU AC - A Series DIN Rail UPS System combines an industry leading compact design with a wide operation temperature range, enhanced communications and unique installation options. The SDU-A Series provides economical protection from damaging impulses and power interruptions. These units include easy to wire screw terminations for critical devices needing battery back-up such as computer based control systems.

Features

  • cRUus, CE, RoHS Compliant, Federal Comminucations Commission, ODVA Compliant
  • Lightweight, compact industrial design
  • Communications port for optional Industrial Ethernet protocols or discrete communication cards
  • USB communication port
  • Wide operation temperature range and cold start capability
  • Remote turn-on and shut-off capabilities
  • Simulated sinewave output
  • Software and cable included for easy installation
  • Panel/wall mounting brackets (optional)

Specifications

Specifications

Capacity (VA/W)
SDU 500A(-5): 500/300; SDU 850A(-5): 850/510
Typical Back-up Time (minutes, full load)
SDU 500A(-5): 4; SDU 850A(-5): 2
Hertz
50 or 60 Hz
Nominal Voltage Range
120 or 230 Vac
Operating Temperature
0°C to +50°C
Mounting
DIN Rail TS35/7.5 or TS35/15 or chassis-mounted
Input VoltageSDU 500A/850A: 120 Vac; SDU 500A-5/850A-5: 230 Vac
Audible Noise< 40dBA (beyond 1 meter from surface)
Input Voltage Range120 V (+10%, -20%) or 230 V (+/- 15%)
Number of PhasesSingle Phase
Output Voltage Range120 or 230 Vac (Simulated Sinewave)
