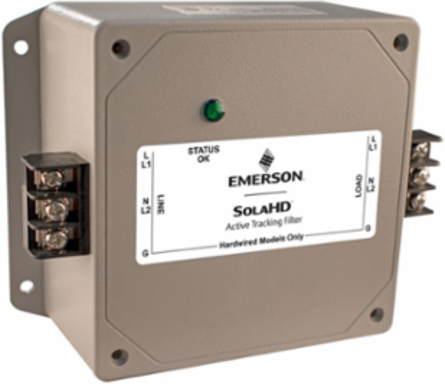

SolaHD STFV02524L STFV Plus Series Tracking Filter with Surge Protection, 30 Amp, -40 C to +60 C
- MPN: STFV02524L
- PPN: SHD-STFV02524L
CAD
$389.33
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
STFV Plus Series combines sinewave tracking technology with surge protection to protect against the full spectrum of voltage transients and surges. These devices protect your equipment by continuously tracking AC power input and responding to high voltage transients and high frequency noise. They are available as hardwired, single phase units in a wide range of amperage ratings and designed for years of trouble free operation.
Features
- cULus, RoHS
- Non degrading, series filter/SPD technology for total durability
- UL surge current capacity: 13,000 amps
- High impact plastic case, epoxy encapsulated enclosure
- Transient protection in all modes (L-N, L-G, and N-G)
- Single phase applications up to 30 amp
- Operating temperature from -40°C to +60°C
- Hardwired connection
- LED power indication
Documentation & Downloads
Specifications
Key Specifications
- Single-Phase 120 and 240 Vac Model Amperage
- 2.5, 5.0, 7.5, 15.0, 30.0
- Peak Surge Current Capability: Line to Neutral
- 6,500 Amps
- Peak Surge Current Capability: Neutral to Ground
- 6,500 Amps
- Load Surge Current Rating: 1 sec
- 3 x Nominal
- Frequency Response: 100 kHz to 50 MHz
- 90 dB Max
- Transient Reduction Typical Category B Ringwave
- <50 V Peak UL 1449
- Hertz
- 50/60 Hz
Peak Surge Current Capability: Per Phase13,000 Amps
Peak Surge Current Capability: Line to Ground6,500 Amps
Load Surge Current Rating: 10 msec5 x Nominal
Load Surge Current Rating: 10 sec2 x Nominal
Transient Reduction Typical Category A Ringwave< 10 V Peak
Operating Temperature-40°C to +60°C
Status IndicatorGreen LED
