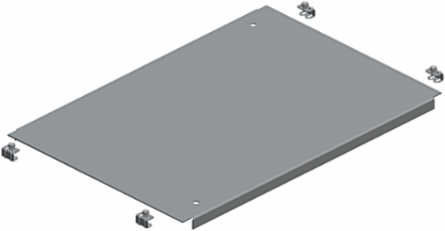

Schneider Electric NSYEC68 Spacial SF Plain Cable Gland Plate 599 x 800 mm Galvanised Steel
- MPN: NSYEC68
- PPN: SCH-NSYEC68
CAD
$111.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Spacial SF plain cable gland plate. 599 x 800 mm. Multi-purpose, cable management accessory. Fixed by clips. Mounting on enclosure bottom. Plain cable entry. Galvanised steel. Thickness 1.5 mm. Plate and fixing elements incl.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Spain, France, United States |
|---|---|
| Width | 16.38 in |
| Height | 1.18 in |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Device Application | multi-purpose, electronic application |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 10 kg CO2 eq., 10.03811927 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 19 kg CO2 eq., 18.55365585 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Cable Gland Type | standard |
| Energy Efficiency Optimized | False |
| Mounting Location | enclosure bottom |
| Product Or Component Type | cable gland plate |
| Range | PanelSeT |
| Software Version | v5.9.4 |
| Thickness | 1.5 mm |
| Pep Code | ENVPEP1109023EN |
| Pep Verification Date | 2023-03-30 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Recyclability Potential In % | 98 |
| Height Useful | 30 mm |
| Width Real | useful: 416 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 7326908688 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The Distribution Phase [A4] | 0.821967678, 0.8 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.946804151, 0.9 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2026-04-15 |
| Stocking Flag | N |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1912 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Cable Entry | plain |
| Device Composition | fixing elements1 plate |
| Material | galvanised steel |
| Product Availability | Stock - Normally stocked in distribution facility |
| Quantity Per Set | set of 1 |
| Returnability | Yes |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 30 kg CO2 eq. |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208. |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; FR |
| Height Nominal | 30 mm |
| Width Nominal | nominal: 600 mm |
| Accessory / Separate Part Category | cable management accessory |
| Package Weight(Lbs) | 4.160 kg |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Carbon Footprint | 30.36054694 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP1109023EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1109023EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-03-30 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | cable gland plate |
|---|
ETIM
| ETIM 8 | EC000211 |
|---|
| ETIM 9 | EC000211 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
