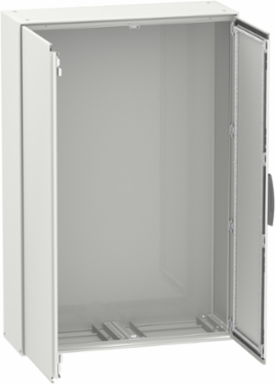

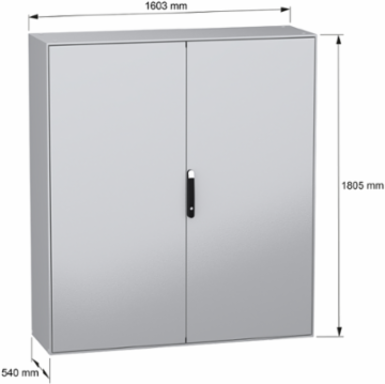

Schneider Electric NSYSM1816502DP Spacial SM Compact Enclosure 1800x1600x500 mm, IP55, IK10, 220 kg

MPN: NSYSM1816502DP
PPN: SCH-NSYSM1816502DP
UNSPSC: 39121327

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Schneider Electric's Spacial SM Compact Enclosure is a robust solution designed for demanding environments, offering a reliable and protective space for your automation and control systems. With a generous size of 1800x1600x500 mm, this enclosure ensures compatibility with various equipment while maintaining excellent durability, evidenced by its IP55 rating for dust and water resistance and IK10 rating for impact protection. Engineered for heavy-duty use with a maximum load capacity of 220 kg, it serves as an ideal platform for housing critical components in data and communication applications, ensuring the longevity and safety of your installations.

Features

Electrical enclosure design that contains recycled steel made with renewable energy to face environmental challenges.
IEC and UL compliant industrial steel cabinet, making it sturdy, robust, and durable for maximum component protection.
Ergonomic design for convenience & time-saving operations.
Large choice of sizes and accessories to simplify mounting, to adapt any control panel and electrical panel requirement.
Reusable recycled cardboard packaging corners.
Quick-fixing system that pre-holds the plate before final screwing fixation, allowing the operation by only one person.
Ideal compact size for floor mount.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Spain

Weight	220000 g

Physical Attributes

Color	enclosure Gray RAL 7035), handle Black RAL 9005)
Enclosure Nominal Width	1600 mm

Enclosure Nominal Height	1800 mm

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Body Type	single piece body with welded rear panel, front part forming a rigid frame with welded corners
Door Opening Side	left 120 °), right 120 °)
Removable Parts	door by screws hingemounting plate by screws mounting plate bracket, mounting plate bracket by screws
Carbon Footprint Of The Distribution Phase A4	435.9989771778507, 436 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	33.65443687082106, 34 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2025-07-10
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1912
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Cable Entry	1 entry
Device Application	multi-purpose
Energy Efficiency Optimized	False
Mounting Plate Description	plain
Product Availability	Non-Stock - Not normally stocked in distribution facility
Product Or Component Type	compact enclosure
Returnability	No
Surface Finish	epoxy-polyester powder
Total Lifecycle Carbon Footprint	1 503 kg CO2 eq.
Database Version	2024-01
Nbr. Of Units In Pkg.	1
Silicone Free	Yes
Functional Unit Description	Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional Unit Unit	Unit
Recyclability Potential In %	89

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Device Composition	1 body2 door, 2 cable gland plate1 locking system with handle door1 blocking system left door4 mounting plate bracket, 1 mounting plate
Material	mounting plate galvanised steelbody sheet steel, door sheet steelhinge zamak
Certificate Agency	BV, DNV, UL
Carbon Footprint Of The End Of Life Phase C1 To C4	540 kg CO2 eq., 540.4488794185133
Carbon Footprint Of The Manufacturing Phase A1 To A3	493 kg CO2 eq., 492.92665065650215
Local Data Status	Publishable
Return Indicator	N
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Coverage	Core product
Door Type	Solid
Lock Type	4 points lock, handle with 5 mm double bar insert
Number Of Doors	front 2
Product Name	PanelSeT SM
Range	PanelSeT
Software Version	v6.2.2
Sustainable Packaging	No
Type Of Gland Plate	standard
Data Source	extrapolated product
Customs Code	9403200090
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Silicon Free	Yes
Environmental Disclosure	ENVPEP2501030EN
Ip Degree Of Protection	IP55 IEC 60529
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP2501030EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent external review

Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Carbon Footprint	1503.0289441236873
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-02-10
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
