Schneider Electric NSYSM1210302D Spacial SM Compact Steel Enclosure 1200x1000x300 mm IP55 IK10
Schneider Electric NSYSM1210302D Spacial SM Compact Steel Enclosure 1200x1000x300 mm IP55 IK10
- MPN: NSYSM1210302D
- PPN: SCH-NSYSM1210302D
- UNSPSC: 39121327
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1985.40/ EA
Description

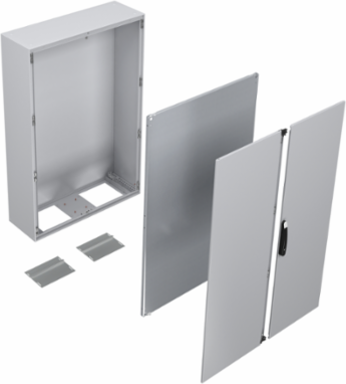

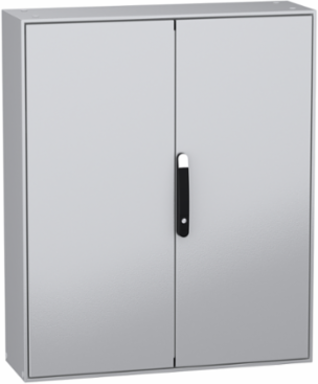

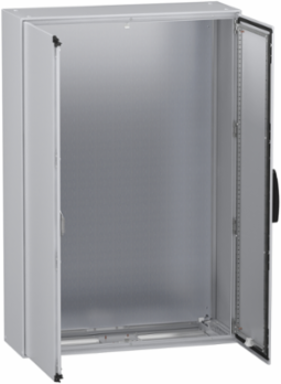

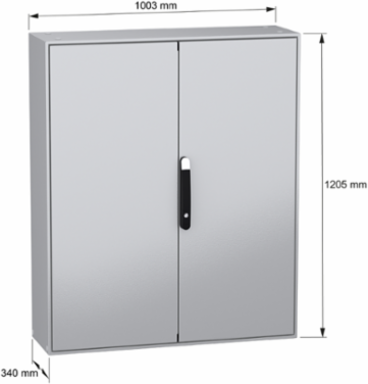

Spacial SM monobloc compact steel enclosure with 2 plain front doors. 1200 x 1000 x 300 mm. Back panel welded, without mounting plate. 4 point door locking system with handle DB 5mm. Steel made. Protection IP 55, IK10, Grey RAL 7035. 4 mounting plate support brackets and 2 parts cable gland plate included.
Specifications
Physical Attributes
- Color
- enclosure Gray RAL 7035), handle Black RAL 9005)
- Enclosure Nominal Width
- 1000 mm
Enclosure Nominal Height1200 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 body, 2 door, 1 cable gland plate, 1 locking system with handle door, 1 blocking system left door, 4 mounting plate bracket
- Material
- body sheet steel, door sheet steel, hinge zamak
- Carbon Footprint Of The Distribution Phase A4
- 11.64614625, 12 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 13.41490658, 13 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2025-07-10
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- N
- Function Option Id
- STANDARD
- Coverage
- Core product
- Installation Accessory Type
- floor-standing
- Package Weight Lbs
- 69.000 kg
- Product Or Component Type
- compact enclosure
- Returnability
- No
- Sustainable Packaging
- No
- Type Of Gland Plate
- standard
- Pep Code
- ENVPEP1109023EN
- PCR Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Unit
- unit
- Product Manager
- JULES BARBALONGA
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Door Opening Sideleft 120 °), right 120 °)
Removable Partsdoor by screws hinge, mounting plate bracket by screws
Carbon Footprint Of The End Of Life Phase C1 To C4142 kg CO2 eq., 142.22628
Carbon Footprint Of The Manufacturing Phase A1 To A3263 kg CO2 eq., 262.8796672
Local Data StatusPublishable
Legacy WEEE ScopeOut
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
WD Status1 - GSC certified
Function OptionStandard
Energy Efficiency OptimizedFalse
Number Of Doorsfront 2
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
RangePanelSeT
Surface Finishepoxy-polyester powder
Total Lifecycle Carbon Footprint430 kg CO2 eq.
Relationship TypeCompatible relationship
Pep Verification Date2023-03-30
PSR VersionPSR-0005-ed2-2016 03 29
Functional Unit DescriptionProtect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
Product Kit IdentifierN
Environment Attributes Main
- EU ROHS Directive
- Compliant By Exemption?, Pro-active compliance (Product out of EU RoHS legal scope)
- Take Back
- No
- China ROHS Regulation
- X
- Carbon Footprint
- 430.167
- IP Degree Of Protection
- IP55 IEC 60529
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1109023EN
- PCR Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1109023EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-03-30
PSR VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- compact enclosure
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
