Schneider Electric NSYSM2016602DP Spacial SM Compact Steel Enclosure 2000x1600x600 mm, IP55, IK10
Schneider Electric NSYSM2016602DP Spacial SM Compact Steel Enclosure 2000x1600x600 mm, IP55, IK10
- MPN: NSYSM2016602DP
- PPN: SCH-NSYSM2016602DP
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description

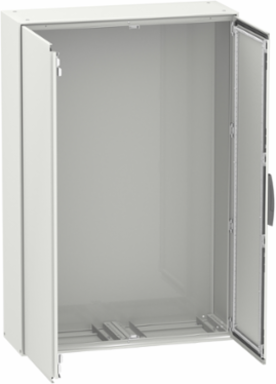

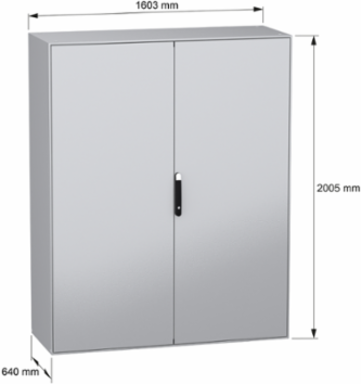

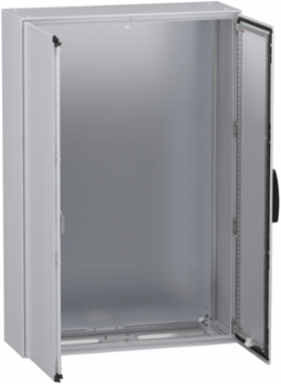

Spacial SM monobloc compact steel enclosure with 2 plain front doors. 1999 x 1600 x 600 mm. Back panel welded, mounting plate included. 4 point door locking system with handle DB 5mm. Sheet steel, galvanized steel for mounting plate. Protection IP 55, IK10, Grey RAL 7035. 4 mounting plate support brackets included.
Specifications
Environment
- Product Certifications
- BV || DNV || UL
- Standards
- IEC 62208
Ik Degree Of ProtectionIK10 IEC 62262
Ip Degree Of ProtectionIP55 IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110923EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Complementary
- Accessibility For Operation
- front
- Type Of Gland Plate
- standard
- Surface Finish
- epoxy-polyester powder
- Colour
- enclosure grey RAL 7035) || handle black RAL 9005)
- Door Type
- plain
- Door Opening Side
- left 120 °) || right 120 °)
- Number Of Doors
- front 2
Body Typefront part forming a rigid frame with welded corners || single piece body with welded rear panel
Materialmounting plate galvanised steel || body sheet steel || door sheet steel || hinge zamak
Cable Entry1 entry
Lock Type4 points lock, handle with 5 mm double bar insert
Net Weight245 kg
Mounting Plate Descriptionplain
Specifications
- Removable Parts
- door by screws hinge || mounting plate by screws mounting plate bracket || mounting plate bracket by screws
- Product Or Component Type
- compact enclosure
- Device Composition

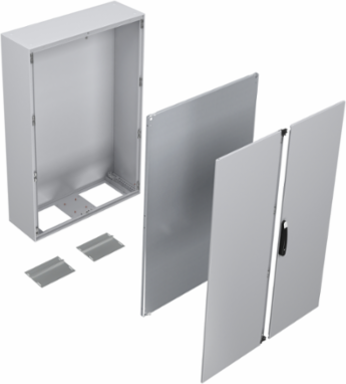

- 1 body || 2 door || 2 cable gland plate || 1 locking system with handle door || 1 blocking system left door || 4 mounting plate bracket || 1 mounting plate
- Enclosure Nominal Depth
- 600 mm
- Enclosure Nominal Width
- 1600 mm
Installation Accessory Typefloor-standing
Product NameSpacial SM
Enclosure Nominal Height2000 mm
Device Applicationmulti-purpose
RangeSpacial
