Schneider Electric NSYSM2016402D Spacial SM Compact Steel Enclosure 2000x1600x400 mm IP55 IK10
- MPN: NSYSM2016402D
- PPN: SCH-NSYSM2016402D
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

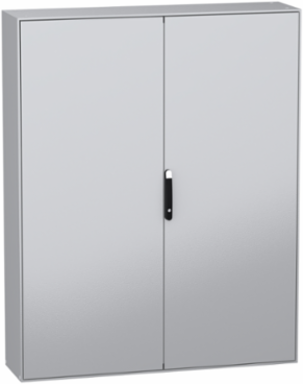

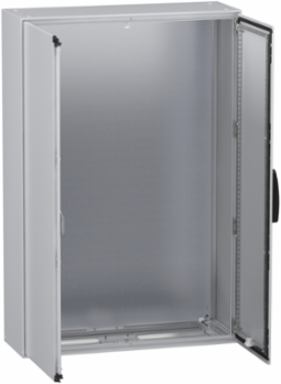

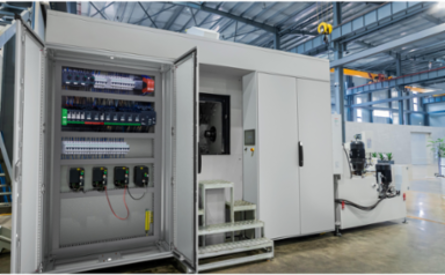

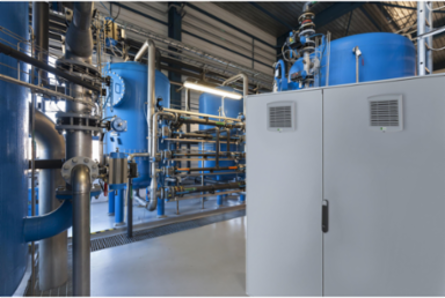

Spacial SM monobloc compact steel enclosure with 2 plain front doors. 2000 x 1600 x 400 mm. Back panel welded, without mounting plate. 4 point door locking system with handle DB 5mm. Steel made. Protection IP 55, IK10, Grey RAL 7035. 4 mounting plate support brackets and 2 parts cable gland plate included.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain
Physical Attributes
- Color
- enclosure Gray RAL 7035), handle Black RAL 9005)
- Enclosure Nominal Width

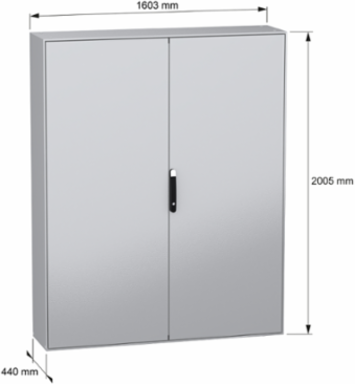

- 1600 mm
Enclosure Nominal Height2000 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL

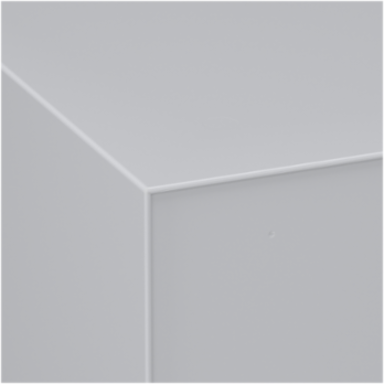

- Body Type
- front part forming a rigid frame with welded corners, single piece body with welded rear panel
- Door Opening Side
- left 120 °), right 120 °)

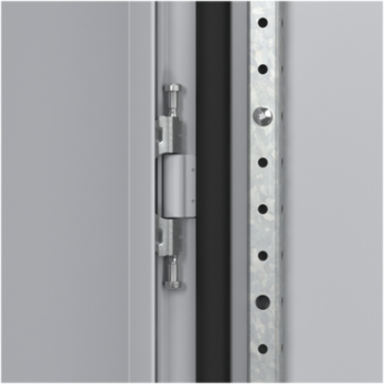

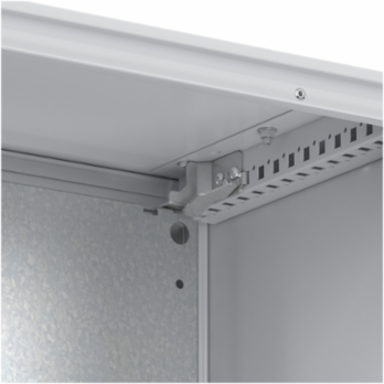

- Removable Parts
- door by screws hinge, mounting plate bracket by screws
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 386 kg CO2 eq., 385.6839730395755
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 352 kg CO2 eq., 351.7703825139584
- Certificate Agency
- BV, UL, DNV
- Local Publishable Date
- 2025-07-10
- Stocking Flag
- Y
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Coverage
- Core product
- Door Type
- Solid
- Lock Type

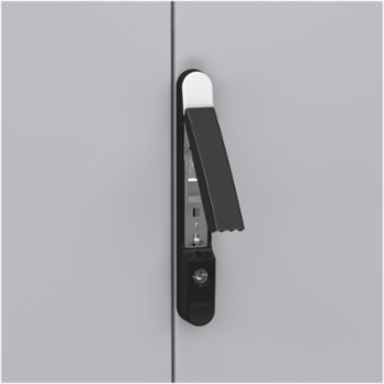

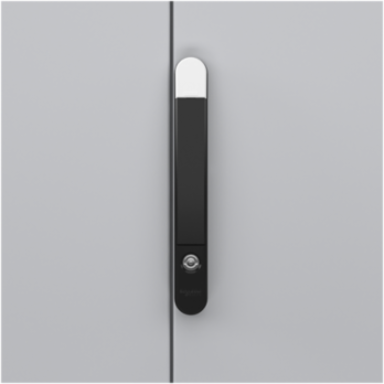

- 4 points lock, handle with 5 mm double bar insert
- Number Of Doors
- front 2
- Product Name
- PanelSeT SM
- Range
- PanelSeT
- Software Version
- v6.2.2
- Sustainable Packaging
- No
- Type Of Gland Plate
- standard
- Warranty In Months
- 18
- Database Version
- 2024-01
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Spain, ES
- Energy Model - Use [B6]
- Electricity origin
- Recyclability Potential, In %
- 89
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial

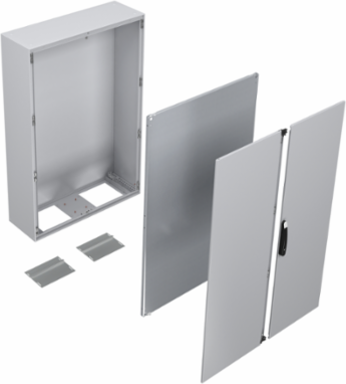

Device Composition1 body, 2 door, 2 cable gland plate, 1 locking system with handle door, 1 blocking system left door, 4 mounting plate bracket
Materialbody sheet steel, door sheet steel, hinge zamak
Carbon Footprint Of The Distribution Phase A4311.1447246223753, 311 kg CO2 eq.
Carbon Footprint Of The Installation Phase A524.017029948722303, 24 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Data StatusPublishable
Return IndicatorN
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1912
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Cable Entry1 entry
Device Applicationmulti-purpose
Energy Efficiency OptimizedFalse
Mounting Plate Descriptionwithout mounting plate
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typecompact enclosure
ReturnabilityNo
Surface Finishepoxy-polyester powder
Total Lifecycle Carbon Footprint1 073 kg CO2 eq.
Silicone FreeYes
Pep CodeENVPEP2501030_V1
Pep Verification Date2025-02-10
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Installation [A5]Electricity origin
Energy Model - End Of Life [C1-c4]Electricity origin
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Silicon Free
- Yes
- Environmental Disclosure
- ENVPEP2501030_V1
- Ip Degree Of Protection
- IP55 IEC 60529
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2501030_V1
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Carbon Footprint1072.6161101246316
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-02-10
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- compact enclosure
ETIM
- ETIM 8
- EC000261
ETIM 9EC000261
Contractual Warranty Attributes
- Warranty Period
- 18 months
