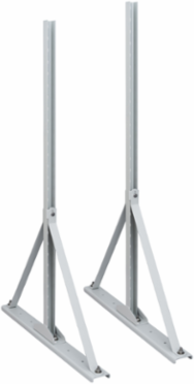

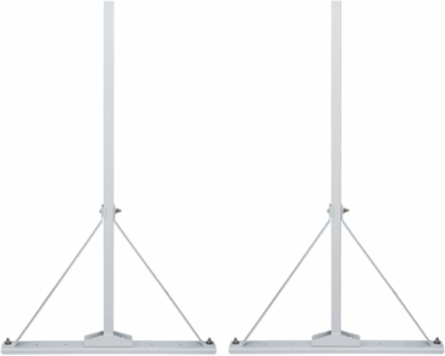

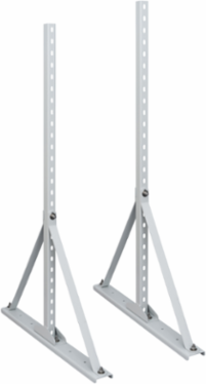

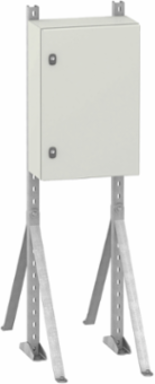

Schneider Electric NSYCOCNS1400 Spacial Support Bracket for Enclosure D300 Max, 1400mm Height, 250mm Width, 120kg Load
- MPN: NSYCOCNS1400
- PPN: SCH-NSYCOCNS1400
CAD
$877.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Developed by Schneider Electric, this Spacial Support Bracket is designed specifically for enclosures with dimensions up to 300 mm in depth. With a robust construction that can support loads of up to 120 kg, it stands at a height of 1400 mm and a width of 250 mm, making it an ideal choice for securing vital components within industrial environments. The thoughtful design ensures stability and reliability, essential for efficient operations, streamlining the installation process while enhancing the overall infrastructure of your electrical systems. This support bracket is an indispensable component for anyone looking to enhance their enclosure setups.
Documentation & Downloads
Specifications
Key Specifications
| Product Destination | enclosure |
|---|---|
| Range Compatibility | Spacial Spacial S3D || Spacial Spacial CRN || Spacial Spacial S3X || Thalassa Thalassa PLM |
| Quantity Per Set | set of 1 |
| Device Composition | fixing elements || 1 fixing bracket || 2 upright |
| Range | Spacial |
| Mounting Support | floor |
|---|---|
| Accessory / Separate Part Category | mounting accessory |
| Product Or Component Type | support bracket |
| Device Application | multi-purpose |
| Mounting Location | rear of enclosure |
Complementary
| Width | 250 mm |
|---|---|
| Material | steel |
| Colour | grey RAL 7035) |
| Fixing Mode | by fixing element - uprights |
| Height | nominal 1400 mm |
|---|---|
| Surface Finish | epoxy-polyester powder |
| Net Weight | 22.5 kg |
| Permanent Permissible Load | 120 kg |
Offer Sustainability
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information |
|---|---|
| Rohs Exemption Information | Yes |
| Environmental Disclosure | ENVPEP100104EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Circularity Profile | N/A |
|---|---|
| Mercury Free | Yes |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
