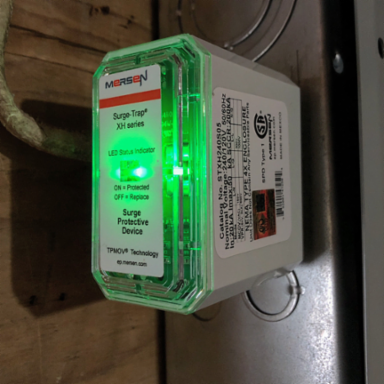

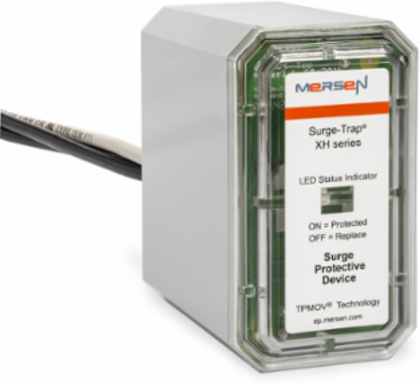

Mersen STXH120P05 Surge-Trap Type 1 SPD 120V L-N 50 kA Compact Design, NEMA 4X Enclosure
- MPN: STXH120P05
- UPC: 782001472511
- PPN: FER-STXH120P05
CAD
$270.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Surge-Trap® STXH is listed UL Type 1 and fully compliant with UL1449 5th Edition, suitable for any 120/240VAC split phase application. Equipped with TPMOV® technology, stands out as the safest option in its class. Compact design, combined with superior performance and reliability, makes it particularly suited for HVAC systems and direct attachment to air conditioning disconnect switches.
Specifications
Key Specifications
- Frequency (Hz)
- 50/60 Hz
- UL SPD Type
- Type 1
- AC or DC
- AC
- Protection Modes
- L-N, L-G
- Indication System
- Yes
- Enclosure NEMA Type
- 4X Non-Metallic
- Number of Wires
- 2 Wires
- MCOV L-N
- 150 V
- Width
- 1.85 in
- Height
- 3.22 in
ROHS CompliantYes
FormatSTXH
Nominal Discharge Current (In) (8/20)20 kA
System ConfigurationSingle Phase
Indication System TypeLED
Housing MaterialPolycarbonate
Installation MountingPanel Mount
VPR L-N600 V
Length3.2 in
Weight0.8 lb
