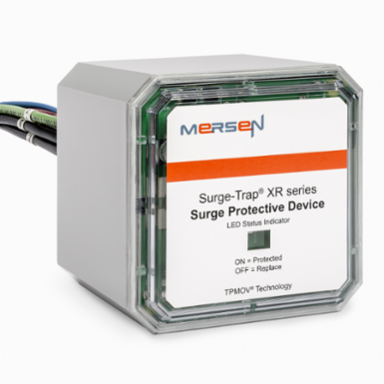

Mersen STXR240D05A Surge-Trap Type 1 240V SPD with 50 kA, UL1449 Certified, Compact Design
- MPN: STXR240D05A
- UPC: 782001470272
- PPN: FER-STXR240D05A
CAD
$723.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The Surge-Trap STXR Series UL listed Type 1 SPD, a leading choice in the STX series, meets the UL1449 5th Edition standards and is an excellent replacement for outdated surge arrestors. This series incorporates TPMOV® technology, ensuring it is one of the safest options available. The STXR series boasts a compact design and offers flexibility for line or load installation, making it ideal for both branch panel and individual equipment protection.
Specifications
Key Specifications
- Frequency (Hz)
- 50/60 Hz
- UL SPD Type
- Type 1
- AC or DC
- AC
- System Configuration
- 3-Phase Delta
- Indication System Type
- LED and Remote Audible Alarm
- Housing Material
- Polycarbonate
- MCOV L-G
- 320 V
- VPR L-G
- 1200 V
- Width
- 3.35 in
- Height
- 3.35 in
ROHS CompliantYes
FormatSTXR
Nominal Discharge Current (In) (8/20)20 kA
Indication SystemYes
Enclosure NEMA Type4X Non-Metallic
Installation MountingPanel Mount
MCOV L-L640 V
VPR L-L1500 V
Length3.25 in
Weight1.6 lb
