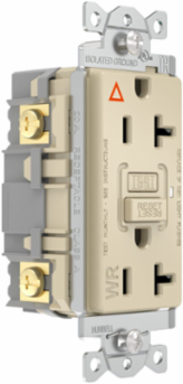

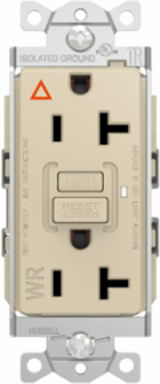

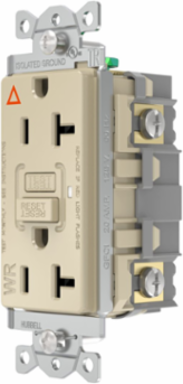

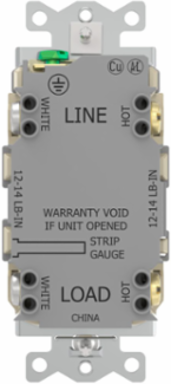

Hubbell Wiring Device-Kellems GFTWR20IIG Spec Grade, 5-20R AUTOGUARD® Self-Testing, Self-Grounding GFCI
- MPN: GFTWR20IIG
- UPC: 883778932045
- PPN: HBL-GFTWR20IIG
- UNSPSC: 39121406
CAD
$71.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Power Protection Devices, Receptacle, Self Test, GFCI, IG, TRWR, Commercial Grade, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Ivory
Features
- Isolated Ground minimizes noise for critical equipment.
- Patented AUTOGUARD® self test technology with LED power and trip indicator and lin-load reversal protection
- CLAD Technology for superior resistance to building noise
- Internal back wiring clamp and guide for quick and secure termination.
- Triple Wipe Construction for enhanced blade contact and long lasting plug retention
- Meets NEC requirements for TR (517-18c) and WR (406.9), UV and corrosion resistance for harsh and damp applications.
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Depth | 1.23 in |
| Dimensions | 4.12 in x 1.75 in x 4.12 in |
| Industry Standard(s) | Meets All NEC® Requirements |
| Color | Ivory |
| Size | 4.12 in x 1.75 in x 4.12 in |
| Type | Tamper-Resistant;Weather Resistant |
| Weight | 0.4 lb. |
| Nema Rating | 5-20R |
| Class Code | A40 |
| Harmonization Code | 8536308000 |
| Sub Class Code | A40A400 |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 0.000 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 |
| Pallet Height | 49.000 in |
| Pallet Weight | 846.592 lb. |
| Current / Amperage Rating | 20 A |
|---|---|
| Description - Slang | GFI,GFR,GF |
| Height | 4.12 in |
| Length | 4.12 in |
| NEMA Rating | 5-20R |
| Standard | Meets All NEC® Requirements |
| Voltage Rating Description | 125 V |
| Width | 1.75 in |
| Style | Isolated Ground |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Series | Heavy Duty |
| BOX SIZE | 5.200x9.400x6.400 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00883778932045 |
| Case Weight | 16.804 lb. |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
