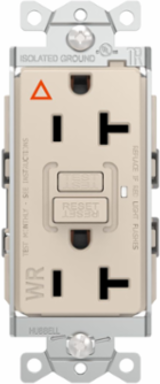

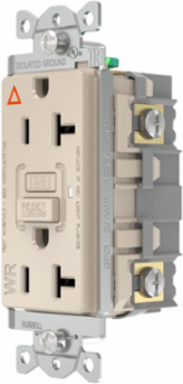

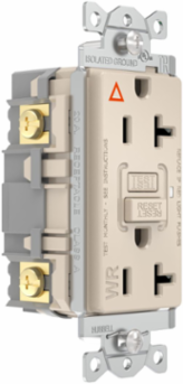

Hubbell Wiring Device-Kellems GFTWR20LAIG Spec Grade, 5-20R AUTOGUARD® Self-Testing, Self-Grounding GFCI
- MPN: GFTWR20LAIG
- UPC: 883778932052
- PPN: HBL-GFTWR20LAIG
- UNSPSC: 39121406
CAD
$71.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Power Protection Devices, Receptacle, Self Test, GFCI, IG, TRWR, Commercial Grade, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Light Almond
Features
- Isolated Ground minimizes noise for critical equipment.
- Patented AUTOGUARD® self test technology with LED power and trip indicator and lin-load reversal protection
- CLAD Technology for superior resistance to building noise

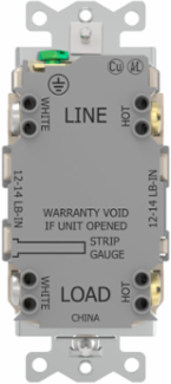

- Internal back wiring clamp and guide for quick and secure termination.
- Triple Wipe Construction for enhanced blade contact and long lasting plug retention
- Meets NEC requirements for TR (517-18c) and WR (406.9), UV and corrosion resistance for harsh and damp applications.
Specifications
Key Specifications
- Country of Origin
- China
- Depth
- 1.23 in
- Dimensions
- 4.12 in x 1.75 in x 4.12 in
- Industry Standard(s)
- Meets All NEC® Requirements
- Color
- Light Almond
- Size
- 4.12 in x 1.75 in x 4.12 in
- Type
- Tamper-Resistant;Weather Resistant
- Weight
- 0.35 lb.
- Nema Rating
- 5-20R
- Class Code
- A40
- Harmonization Code
- 8536308000
- Sub Class Code
- A40A400
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 0.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10
- Pallet Height
- 49.000 in
- Pallet Weight
- 824.000 lb.
Current / Amperage Rating20 A
Description - SlangGFI,GFR,GF
Height4.12 in
Length4.12 in
NEMA Rating5-20R
StandardMeets All NEC® Requirements
Voltage Rating Description125 V
Width1.75 in
StyleIsolated Ground
Freight Class Code06168002
Image Actual Or RepresentativeA
SeriesHeavy Duty
BOX SIZE5.125x9.250x9.375 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack00883778932052
Case Weight14.000 lb.
Pallet Length48.000 in
Pallet Width40.000 in
