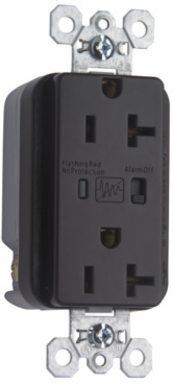

Pass & Seymour 5362SP 20A 125V Extra Heavy Duty Surge Protective Duplex Receptacle, Brown, 2.8 Inch Height, 1.75 Inch Width
Pass & Seymour 5362SP 20A 125V Extra Heavy Duty Surge Protective Duplex Receptacle, Brown, 2.8 Inch Height, 1.75 Inch Width
- MPN: 5362SP
- UPC: 785007536294
- PPN: P-S-5362SP
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$109.98/ EA
Description
Surge Protective Extra Heavy-Duty Duplex Receptacle offers increased transient protection, reliability and protection notification (Audible Alarm with LED Indicator). Specification grade surge suppressor receptacle with audible alarm and LED indicator, ideal for heavy duty power applications. By Pass and Seymour. Back and Side Wire, 20A, 125V.
Features
- Solid-state LED monitor has 25-year minimum life expectancy. A high visibility, wide-angle lens indicates protection is in place.
- .032 inch thick, brass, triple-wipe power contacts for lasting retention.
- Audible alarm alert of MOV damage. Alarm able to be turned On/Off.
- Wrap-around steel strap for structural integrity. Auto-ground is standard, for easier installation.
- Impact-resistant thermoplastic exterior resists impacts and scrapes.
- Triple-wipe, copper-alloy contacts for superior, more dependable connection.
- Thermal protection in 3 modes. 3 17mm dual pack MOVs absorb up to 300 Joules of excess energy in each leg (L-N, L-G, N-G) with 24,000 amp current handling capability for full, equal and symmetrical protection.
- Protection response time in less than one nanosecond.
- For covering patents, see www.legrand.us/patents.
Specifications
Specifications
- Depth
- 1.225 in
- Height
- 2.8 in
- Width
- 1.75 in
- Country of Origin
- Mexico
- Number of Wires
- 3.0
- Indoor/Outdoor
- Indoor
- Features
- Audible Alarm
- Features
- Indicator Lights
- Outlet Type
- Straight Blade
- Outlet Type
- Surge Protected
- NEMA Configuration Code
- 5-20R
- Wire Connection Type
- Screw Terminals
- Operating Temperature Max
- 60.0 °C
- Operating Temperature
- -40°-60°C
- Environmental Conditions
- Flammability: UL94 V2
- Special Features
- Solid-state LED monitor has 25-year minimum life expectancy. A high visibility, wide-angle lens indicates protection is in place. LED Indication: steady green = protected, flashing red = not protected, OFF = no power to unit. Audible alarm alert of MOV damage. Alarm able to be turned On/Off. Wrap-around steel strap for structural integrity. Auto-ground is standard, for easier installation. Impact-resistant nylon exterior resists impacts and scrapes. Triple-wipe, copper-alloy contacts for superior, more dependable connection. External screw-pressure-plate back and side wire terminals including ground with external back wire clamps (exclusive) accept #14 - #10 AWG copper or copper-clad, solid or stranded conductors. External pressure plate feature allows two conductors to be terminated by a single screw. Thermal protection in 3 modes. 3 17mm dual pack MOVs absorb up to 340 Joules of excess energy in each leg (L-N, L-G, N-G) with 24,000 amp current handling capability for full, equal and symmetrical protection. Protection response time in less than one nanosecond.
ColorBrown
Product LinePass & Seymour
Amperage20.0 A
Voltage125.0 V
StandardcUL UL1449
Wire Size14 - 10 AWG
Wall Plate IncludedNo
Number of Receptacles2.0
Number of PolesDouble Pole
Application SectorCommercial
Connection LocationBack and Side
Warranty Type1-Year Limited Warranty
Operating Temperature Min-40.0 °C
Wire Connection TypeInternal Pressure Plates
StandardUL498: CSA C22.2 No. 42: ANSI/EEE C62.41 (Formerly IEEE 587)
StandardANSI/IEEE C62.45 Installation Categories “A” (Ring Wave) “B” (Unidirectional Impulse).
