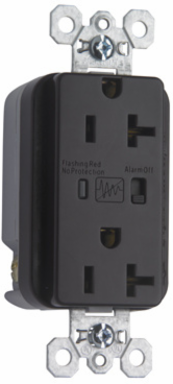

Pass & Seymour 5362BKSP 20A 125V Surge Protective Duplex Receptacle, Black, 1.225 Inch Depth, 2.8 Inch Height, 1.75 Inch Width
- MPN: 5362BKSP
- UPC: 785007028805
- PPN: P-S-5362BKSP
CAD
$127.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
20A 125V Surge Protective Duplex Receptacle, Black, 1.225 Inch Depth, 2.8 Inch Height, 1.75 Inch Width
Features
- Solid-state LED monitor has 25-year minimum life expectancy. A high visibility, wide-angle lens indicates protection is in place.
- .032 inch thick, brass, triple-wipe power contacts for lasting retention.
- Audible alarm alert of MOV damage. Alarm able to be turned On/Off.
- Wrap-around steel strap for structural integrity. Auto-ground is standard, for easier installation.
- Impact-resistant thermoplastic exterior resists impacts and scrapes.
- Triple-wipe, copper-alloy contacts for superior, more dependable connection.
- Thermal protection in 3 modes. 3 17mm dual pack MOVs absorb up to 300 Joules of excess energy in each leg (L-N, L-G, N-G) with 24,000 amp current handling capability for full, equal and symmetrical protection.
- Protection response time in less than one nanosecond.
- For covering patents, see www.legrand.us/patents.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.225 in
- Height
- 2.8 in
- Product Line
- Pass & Seymour
- Phase
- Single
- Standard
- RoHS
- Amperage
- 20.0 A
- Number of Wires
- 3.0
- Wire Size
- 14 - 10 AWG
- Wall Plate Included
- No
- Number of Receptacles
- 2.0
- Number of Poles
- Double Pole
- Application Sector
- Commercial
- Environmental Conditions
- UL94 V2
- Wire Connection Type
- Screw Terminals
- Operating Temperature Max
- 60.0 °C
- Operating Temperature
- -40°-60°C
- Special Features
- Surge Protective Extra Heavy-Duty Duplex Receptacle offers increased transient protection, reliability and protection notification (Audible Alarm with LED Indicator)
ColorBlack
Width1.75 in
Country of OriginChina
StandardFSUL
StandardcULus
Voltage125.0 V
Indoor/OutdoorIndoor
FeaturesAudible Alarm
FeaturesIndicator Lights
Outlet TypeStraight Blade
Outlet TypeSurge Protected
NEMA Configuration Code5-20R
Connection LocationBack and Side
Warranty Type1-Year Limited Warranty
Operating Temperature Min-40.0 °C
Wire Connection TypeInternal Pressure Plates
