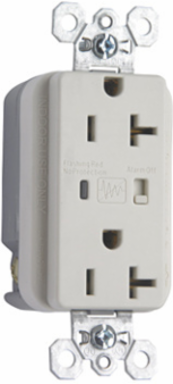

Pass & Seymour 5362LASP 20A 125V Extra Heavy Duty Surge Protective Duplex Receptacle, Light Almond, 1.225 Inch Depth, 1.75 Inch Width, 2.8 Inch Height
- MPN: 5362LASP
- UPC: 785007194401
- PPN: P-S-5362LASP
CAD
$127.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
20A 125V Extra Heavy Duty Surge Protective Duplex Receptacle, Light Almond, 1.225 Inch Depth, 1.75 Inch Width, 2.8 Inch Height
Features
- Solid-state LED monitor has 25-year minimum life expectancy. A high visibility, wide-angle lens indicates protection is in place.
- .032 inch thick, brass, triple-wipe power contacts for lasting retention.
- Audible alarm alert of MOV damage. Alarm able to be turned On/Off.
- Wrap-around steel strap for structural integrity. Auto-ground is standard, for easier installation.
- Impact-resistant thermoplastic exterior resists impacts and scrapes.
- Triple-wipe, copper-alloy contacts for superior, more dependable connection.
- Thermal protection in 3 modes. 3 17mm dual pack MOVs absorb up to 300 Joules of excess energy in each leg (L-N, L-G, N-G) with 24,000 amp current handling capability for full, equal and symmetrical protection.
- Protection response time in less than one nanosecond.
- For covering patents, see www.legrand.us/patents.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.225 in
- Color
- Light Almond
- Product Line
- Pass & Seymour
- Amperage
- 20.0 A
- Number of Wires
- 3.0
- Indoor/Outdoor
- Indoor
- Features
- Audible Alarm
- Features
- Indicator Lights
- Outlet Type
- Straight Blade
- Outlet Type
- Surge Protected
- NEMA Configuration Code
- 5-20R
- Wire Connection Type
- Screw Terminals
- Operating Temperature Max
- 60.0 °C
- Operating Temperature
- -40°-60°C
- Environmental Conditions
- Flammability: UL94 V2
- Standard
- ANSI/IEEE C62.45 Installation Categories “A” (Ring Wave) “B” (Unidirectional Impulse).
Height2.8 in
Width1.75 in
Country of OriginMexico
Voltage125.0 V
StandardcUL UL1449
Wire Size14 - 10 AWG
Wall Plate IncludedNo
Number of Receptacles2.0
Number of PolesDouble Pole
Application SectorCommercial
Connection LocationBack and Side
Warranty Type1-Year Limited Warranty
Operating Temperature Min-40.0 °C
Wire Connection TypeInternal Pressure Plates
Special FeaturesSolid-state LED monitor has 25-year minimum life expectancy. A high visibility, wide-angle lens indicates protection is in place. LED Indication: steady green = protected, flashing red = not protected, OFF = no power to unit. Audible alarm alert of MOV damage. Alarm able to be turned On/Off. Wrap-around steel strap for structural integrity. Auto-ground is standard, for easier installation. Impact-resistant nylon exterior resists impacts and scrapes. Triple-wipe, copper-alloy contacts for superior, more dependable connection. External screw-pressure-plate back and side wire terminals including ground with external back wire clamps (exclusive) accept #14 - #10 AWG copper or copper-clad, solid or stranded conductors. External pressure plate feature allows two conductors to be terminated by a single screw. Thermal protection in 3 modes. 3 17mm dual pack MOVs absorb up to 340 Joules of excess energy in each leg (L-N, L-G, N-G) with 24,000 amp current handling capability for full, equal and symmetrical protection. Protection response time in less than one nanosecond.
StandardUL498: CSA C22.2 No. 42: ANSI/EEE C62.41 (Formerly IEEE 587)
