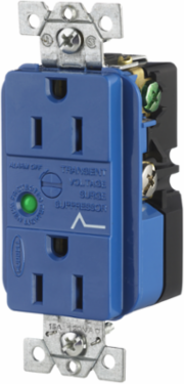

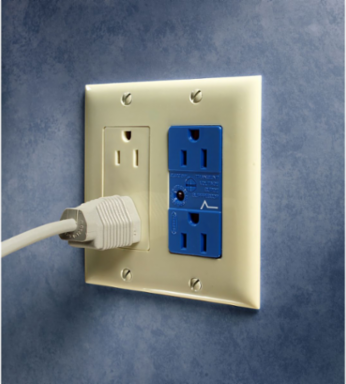

Hubbell Wiring Device-Kellems HBL5260SA Surge Protective Duplex Receptacle 15A 125V 5-15R Blue
- MPN: HBL5260SA
- UPC: 783585060019
- PPN: HBL-HBL5260SA
- UNSPSC: 39121610
CAD
$180.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Surge Protective Devices, SPIKESHIELD TVSS Duplex Receptacle with Light, 15A 125V, 5-15R, Blue
Features
- Automatic self-grounding staple
- Distinctive surge symbol provides quick identification
- Power-on indicator light verifies that power is available
- Alert alarm sounds when surge protection is no longer functioning
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Current / Amperage Rating
- 15 A
- Industry Standard(s)
- CSA Certified to Specification C22.2 No. 42;Listed to UL Standards 498;UL Listed File E2186
- Amperage Rating
- 15 A
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Operating Temperature
- 32 Deg F to 140 Deg F (0 Deg C to 60 Deg C)
- Phase
- Single Phase
- Special Features
- Standard Product
- Type
- Duplex
- Voltage Rating Description
- 125 V
- General Literature Asset 1 Display Text
- SpikeShield® Surge Protective Devices
- Display Size
- Standard
- Class Code
- A44
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 5250S;5260S;HBL5260S
- Material - Mounting Hardware
- Mounting Screws
- Material
- Composite
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 3 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 15.800 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 46.000 in
- Pallet Weight
- 1106.000 lb.
- NAICS Code
- 335999E509
ColorBlue
Width2.200 in
PerformanceElectrical - Protection Modes - Normal and Common Modes;Electrical - Response Time - Approximately 5 ns;Electrical - Transient Suppression - Peak Energy (10 X 100 µs), Peak Current (8 X 20 µs);Electrical - Voltage - 120V AC + 10% - 15%;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - 32°F to 140°F (0°C to 60°C)
ApplicationDecorator Duplex
Frequency Rating60 Hz
OutletStraight Blade
Response Time5
StandardCSA Certified to Specification C22.2 No. 42;Listed to UL Standards 498;UL Listed File E2186
Voltage Rating125 V
Engineering Drawing 1 Display TextHBL5260SA AutoCAD Drawing
ConnectivityTerminal Screws
Nema Rating5-15R
Description - InvoiceDUP SPD RCPT, 15A 125V, 5-15R, BL
Harmonization Code8536308000
MSDS FlagNo
Sub Class CodeA44A420
Current Rating15 A
SeriesSpecification Grade
BOX SIZE4.400x11.000x4.500 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585060019
Case - Total Units50 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585060018
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- No
