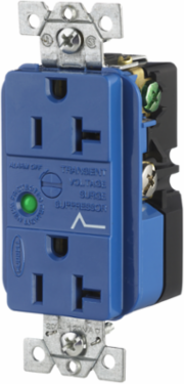

Hubbell Wiring Device-Kellems HBL5360SA SPIKESHIELD Surge Protective Duplex Receptacle 20A 125V, Blue
- MPN: HBL5360SA
- UPC: 783585060231
- PPN: HBL-HBL5360SA
- UNSPSC: 39121610
CAD
$214.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Surge Protective Devices, SPIKESHIELD TVSS Duplex Receptacle with Light, 20A 125V, 5-20R, Blue
Features
- Automatic self-grounding staple
- Distinctive surge symbol provides quick identification
- Power-on indicator light verifies that power is available
- Alert alarm sounds when surge protection is no longer functioning
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Current / Amperage Rating
- 20 A
- Industry Standard(s)
- CSA Certified to Specification C22.2 No. 42;Listed to UL Standards 498;UL Listed File E2186
- Amperage Rating
- 20 A
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Operating Temperature
- 32 Deg F to 140 Deg F (0 Deg C to 60 Deg C)
- Phase
- Single Phase
- Special Features
- Standard Product
- Type
- Duplex
- Voltage Rating Description
- 125 V
- General Literature Asset 1 Display Text
- SpikeShield® Surge Protective Devices
- Display Size
- Standard
- Class Code
- A44
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 5350S;5360S;HBL5360S
- Material - Mounting Hardware
- Mounting Screws
- Indicator(s) Type
- LED and Audible Alarm
- Series
- Specification Grade
- BOX SIZE
- 4.300x10.900x4.500 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585060231
- Case - Total Units
- 50 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585060230
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
ColorBlue
Width2.200 in
PerformanceElectrical - Protection Modes - Normal and Common Modes;Electrical - Response Time - Approximately 5 ns;Electrical - Transient Suppression - Peak Energy (10 X 100 µs), Peak Current (8 X 20 µs);Electrical - Voltage - 120V AC + 10% - 15%;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - 32°F to 140°F (0°C to 60°C)
ApplicationDecorator Duplex
Frequency Rating60 Hz
OutletStraight Blade
Response Time5
StandardCSA Certified to Specification C22.2 No. 42;Listed to UL Standards 498;UL Listed File E2186
Voltage Rating125 V
Engineering Drawing 1 Display TextHBL5360SA AutoCAD Drawing
ConnectivityTerminal Screws
Nema Rating5-20R
Description - InvoiceDUP SPD RCPT, 20A 125V, 5-20R, BL
Harmonization Code8537109170
MSDS FlagNo
Sub Class CodeA44A420
Current Rating20 A
MaterialComposite
Base Unit of MeasureEA
Carton - Gross Weight per Pack3.05 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight6.952 lb.
Lowest Level UOMEach
Pallet Height46.000 in
Pallet Weight1109.500 lb.
NAICS Code335999E509
Certifications
- EU RoHS Indicator
- No
