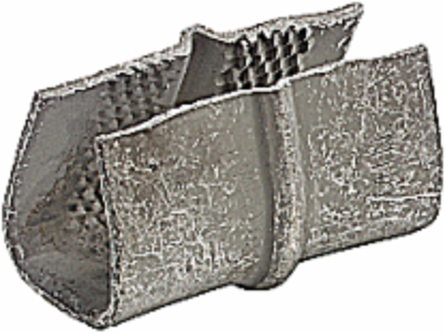

Dragon Tooth 220015 Splices

Splices

Dragon Tooth 220015 Splices

MPN: 220015
UPC: 786210855516
PPN: T-B-220015

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$11.43/ EA

Loading add to cart quantity...

Description

Insulation Piercing Magnet Wire Splice, Length 1.50 Inches, Width .88 Inches, Height .77 Inches, Wire Range #10 AWG - #6 AWG 50,000 Circular Mil Area - 115,000 Circular Mil Area, Copper Alloy, Tin Plated

Features

Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire.
For aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections.

Specifications

North American Specifications (UNSPSC)

UNSPSC: 39121449 Wire or cable compression splice

Brand Name: Dragon Tooth

Special Features: Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire.

Standard: UL E9809

Finish: Tin Plated

IGCC4669 Wire or cable compression splice

TypeSplices

ApplicationFor aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections.

MaterialCopper

European Specifications (ETIM)

ETIM: EC001059 Crimp splices for copper conductor

Model: Standard version

Suitable for solid cores: N

Suitable for fine strand conductors: N

Suitable for round conductors: N

Material: Copper

Insulation: None

Type of connection: End connector

AWG-range10-6

Sleeve formShort

Useful for stranded conductorsN

Suitable for insulated varnishY

Suitable for flat conductorsY

Surface protectionTinned

Voltage rowUp to 600 V

Oil stop/centre barN

Packaging

Inner Quantity: 50

Outer Quantity: 250

Weight Uom: 8 lbs. per 100

Inner Dimensions (inches)6x4x4

Outer Dimensions (inches)21.5x6.6x5.2
