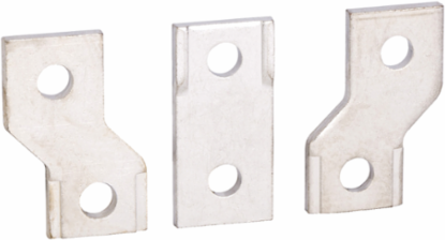

Schneider Electric GV7AC03 TeSys GV7 Spreader, 3P, 45mm Connection Pitch, Green Premium
- MPN: GV7AC03
- PPN: SCH-GV7AC03
- UNSPSC: 39121521
CAD
$45.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
TeSys GV spreaders, for motor circuit breakers GV5, GV7. Used to increase the pitch of power terminals from 35 mm to 45 mm. With spreaders, use of insulating screens GV7AC05 on the backplate of the circuit breaker is mandatory.
Features
- Spreaders for motor circuit breakers GV5, GV7
- Increase the pitch of power terminals from 35 mm to 45 mm
- Easy installation thanks to universal fixing arrangement Screw fixing or clip-on mounting
- Wide range of accessories and auxiliaries provide flexibility
- Suitable for isolation
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France |
|---|
Important Information Attributes
| Local Data Status | Publishable |
|---|---|
| Return Indicator | N |
| Traceability | No |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2030 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Compatibility Code | spreader |
| Device Short Name | GV7AC |
| Number Of Poles | 3P |
| Product Or Component Type | spreader |
| Returnability | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Local Publishable Date | 2026-07-28 |
|---|---|
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Connection Pitch | 45 mm |
| Energy Efficiency Optimized | False |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range | TeSys |
| Sustainable Packaging | No |
| Accessory / Separate Part Category | connection accessory |
| Customs Code | 8538908180 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Take Back | No |
|---|---|
| Mercury Free | Yes |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | spreader |
|---|
ETIM
| ETIM 8 | EC002019 |
|---|---|
| ETIM 10 | EC002019 |
| ETIM 9 | EC002019 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
