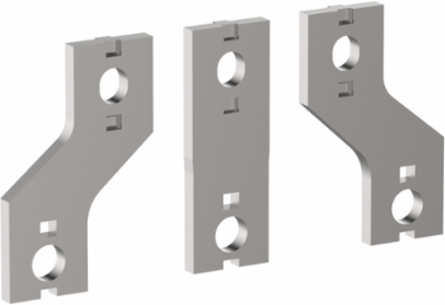

Schneider Electric LA9G3712 Spreader Kit,TeSys Giga contactor,for LC1G265-500,3 pole,box lug connections,45-70 mm pole pitch

Spreader Kit,TeSys Giga contactor,for LC1G265-500,3 pole,box lug connections,45-70 mm pole pitch
  • MPN: LA9G3712
  • PPN: SCH-LA9G3712

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$247.09/ EA

Description

These accessories are terminal adapters for TeSys Giga 265-500 contactor. It is used to 3 Poles electrical circuit. They are screwed to the contactor terminals to increase the pitch between poles from 45mm to 70mm. The rated current is up to 500 A. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).

Specifications

Specifications

Range Compatibility
TeSys LC1G || TeSys LR9G
Product Or Component Type
spreader
Quantity Per Set
set of 3
Accessory / Separate Part Categoryconnection accessories
Poles Description3P
Device Short NameLA9G

Offer Sustainability

Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP2105013
Pvc Free
Yes
China Rohs Regulation
X
Eu Rohs Directive
Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI2105013
Halogen Content PerformanceHalogen free plastic parts product

Environment

Product Certifications
UL
Standards
EN/IEC 60947-1 || UL 60947-1 || CSA C22.2 No 60947-1 || GB/T 14048
Ambient Air Temperature For Storage
-60-80 °C
Ambient Air Temperature For Operation-40-60 °C
Pollution Degree3 IEC 60947-1
Operating Altitude3000 m without derating || 5000 m with derating factor

Complementary

Height
6 mm
Width
55 mm
Product Compatibility
LC1G265...500
Net Weight0.37 kg
Depth85 mm
