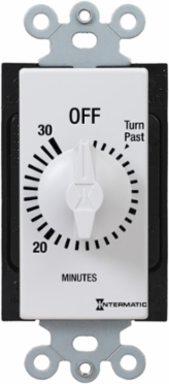

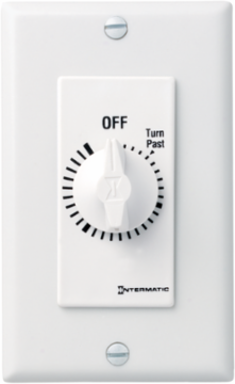

Intermatic FD430MW Spring Wound Countdown Timer 125-277 VAC 30 Minute White
- MPN: FD430MW
- UPC: 078275186026
- PPN: INT-FD430MW
- UNSPSC: 39122208
CAD
$143.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The FD Series Decorator Countdown Timers are designed to replace any standard or decorator style wall switch, single- or multi-gang. These mechanical timers do not require electricity to operate. They automatically limit the ON times for fans, lighting, motors, heaters and other energy consuming loads. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly. Wall plate not included.
Features
- 30-Minute timer
- DPST (Double-Pole Single-Throw)
- Breaks circuit at end of timing cycle
- No electricity required to operate
- Replaces any standard or decorator single- or multi-gang wall switch
- Automatically limits ON time for energy consuming loads
- Quick and easy installation
- Time-saving up front terminal connection with teeter-type terminals
- Incandescent/fluorescent/CFL/LED compatible
- No neutral connection is required
Documentation & Downloads
Specifications
Key Specifications
- Input Voltage Rating Range(s)
- 125-277 VAC, 50/60 Hz
- Color
- White
- Marketing Description
- The FD Series Decorator Countdown Timers are designed to replace any standard or decorator style wall switch, single- or multi-gang. These mechanical timers do not require electricity to operate. They automatically limit the ON times for fans, lighting, motors, heaters and other energy consuming loads. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly. Wall plate not included.
- Width
- 1.75 in
- Country of Origin
- Tunisia
Warranty Period1-Year limited
ApplicationsAir Movement & Ventilation;Indoor Lighting Control;Outdoor Lighting Control;Motor Control
Height4.125 in
Depth1.25 in
