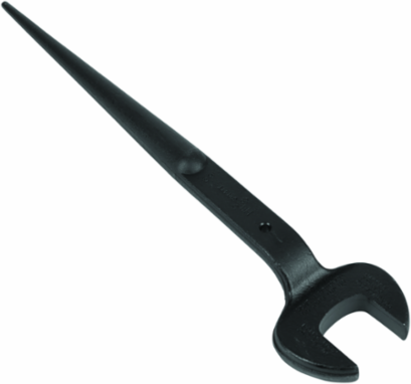

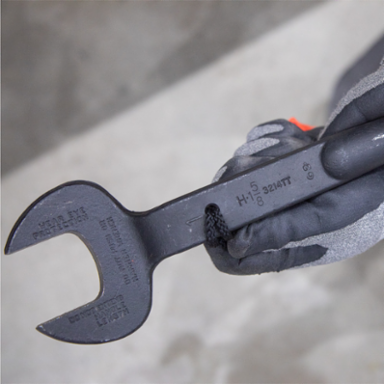

Klein Tools 3214TT Spud Wrench 1-5/8 Inch Opening, 18 Inch Length, Alloy Steel, Tetherable
- MPN: 3214TT
- UPC: 092644680700
- PPN: KLT-3214TT
- UNSPSC: 27111714
CAD
$120.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Forged from select alloy steel, Klein Tools' 1-5/8-Inch Nominal Opening Spud Wrench is designed to withstand high-leverage and heavy loads. For use with 1-Inch bolts and U.S. heavy nut types, the extra heavy-duty head area provides maximum strength and durability. Plus, the continuous taper of the handle makes it easy to line up bolt holes. Includes a built-in hole so tool can be tethered when working at height.

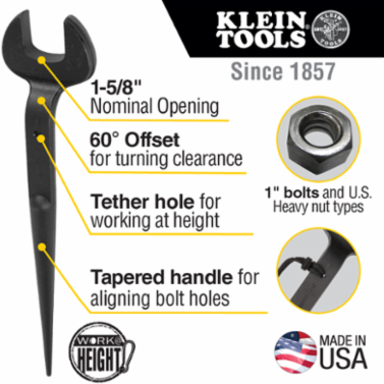

Features

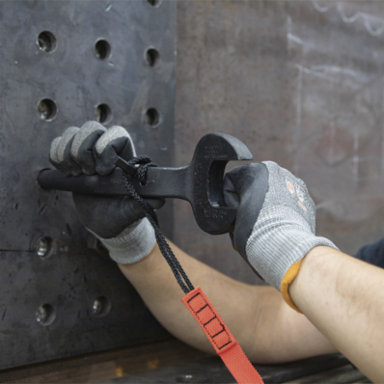

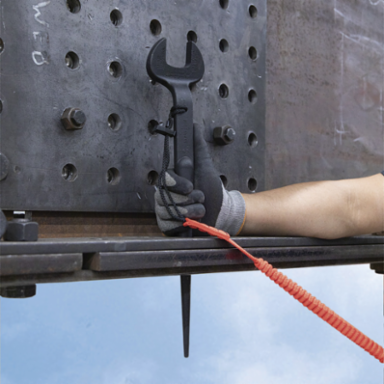

- Cross-hole with no sharp edges for tethering
- Forged in the USA from select US alloy steel to withstand high-leverage and heavy loads
- Catalog number, bolt size and nominal opening size are stamped on every wrench for easy identification
- Continuous taper of handle makes lining-up bolt holes easy and works on a range of bolt and/or hole sizes without binding
- Extra-large hub area works on larger diameter holes better than other wrenches
- American Bridge design
- Tether not included
- Hole for Tethering
Documentation & Downloads
Specifications
Key Specifications
- Nominal Opening
- 1-5/8" (4.1 cm)
- Nut Type
- U.S. Heavy
- Type
- Spud Wrench
- Taper Diameter
- 1-1/8" to 1/4" (2.9 to 0.6 cm)
- Heavy Nut Size
- 1" (2.5 cm)
- Head Width
- 9.2 cm (3.625 Inch)

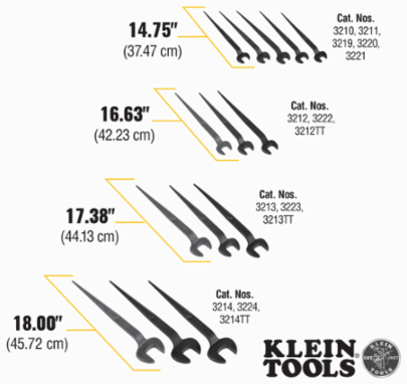

- Overall Length
- 18 Inch (45.7 cm)
- Width
- 3.6250 in
- Weight
- 3.3600 lbs
Offset Angle60°
ApplicationConnecting Steel Members
MaterialAlloy Steel
FinishBlack Oxide with a Rust Preventative
Overall Height2.5 cm (1 Inch)
Overall Width3.6 Inch (9.1 cm)
Height1.0000 in
Depth18.0000 in
