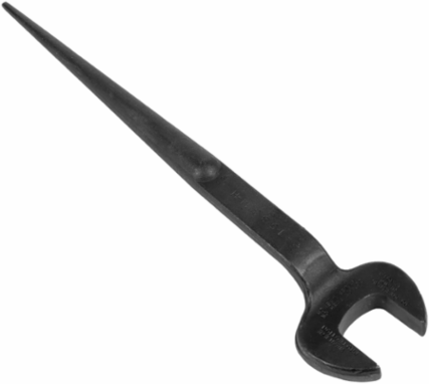

Klein Tools 3214 Spud Wrench 1-5/8 Inch Nominal Opening, Alloy Steel, 3.36 lbs, 18 Inch Length
- MPN: 3214
- UPC: 092644680106
- PPN: KLT-3214
- UNSPSC: 27111714
CAD
$117.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

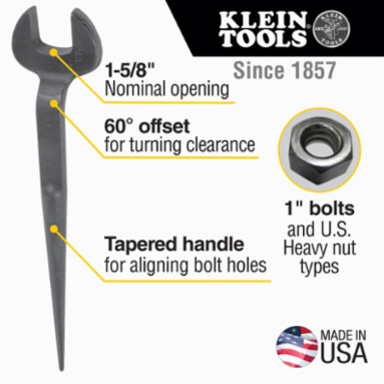

Forged from select alloy steel, the Klein Tools 1-5/8-Inch Nominal Opening Spud Wrench is designed to withstand high-leverage and heavy loads. It's designed for use with 1-Inch bolts and utility nut types. The extra-duty head area gives maximum strength and durability. Plus, the continuous taper of the handle makes it easy to line up bolt holes.
Features
- Forged in the USA from select US alloy steel to withstand high-leverage and heavy loads
- Extra heavy-duty head area gives maximum strength and durability
- Continuous taper of handle makes lining-up bolt holes easy and works on a range of bolt and/or hole sizes without binding
- Extra-large hub area works on larger diameter holes better than other wrenches

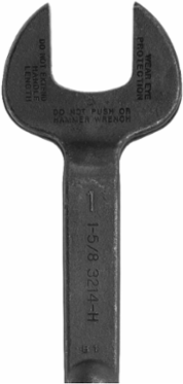

- Catalog number, bolt size and nominal opening size are stamped on every wrench for easy identification
- American Bridge design
- Extra Heavy-Duty Head for Maximum Strength
Documentation & Downloads
Specifications
Key Specifications
- Nominal Opening
- 1-5/8" (4.1 cm)
- Nut Type
- U.S. Heavy
- Material
- Alloy Steel
- Taper Diameter
- 1-1/8" to 1/4" (2.9 to 0.6 cm)
- Heavy Nut Size
- 1" (2.5 cm)
- Head Width
- 9.2 cm (3.625 Inch)
- Overall Length
- 18 Inch (45.7 cm)
- Width
- 3.6250 in
- Weight
- 3.3600 lbs
TypeSpud Wrench
ApplicationConnecting Steel Members
Offset Angle60°
FinishBlack Oxide with a Rust Preventative
Overall Height2.5 cm (1 Inch)
Overall Width3.6 Inch (9.1 cm)
Height1.0000 in
Depth18.0000 in
