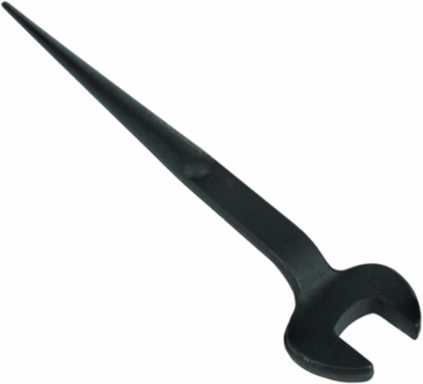

Klein Tools 3224 Spud Wrench 1-1/2 Inch Nominal Opening, 18 Inch Length, Alloy Steel

MPN: 3224
UPC: 092644680199
PPN: KLT-3224
UNSPSC: 27111714

$120.37

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

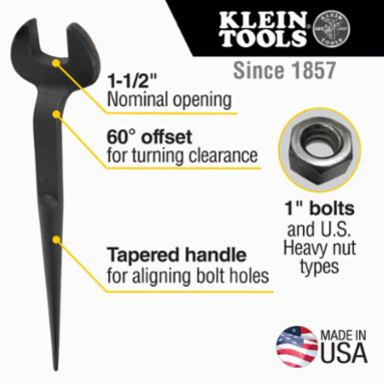

Forged from select alloy steel, the Klein Tools 1-1/2-Inch Nominal Opening Spud Wrench is designed to withstand high-leverage and heavy loads. It's designed for use with 1-Inch bolts and U.S. regular nut types. The extra-duty head area gives maximum strength and durability. Plus, the continuous taper of the handle makes it easy to line up bolt holes.

Features

Forged in the USA from select US alloy steel to withstand high-leverage and heavy loads
Extra heavy-duty head area gives maximum strength and durability
Continuous taper of handle makes lining-up bolt holes easy and works on a range of bolt and/or hole sizes without binding
Extra-large hub area works on larger diameter holes than other wrenches

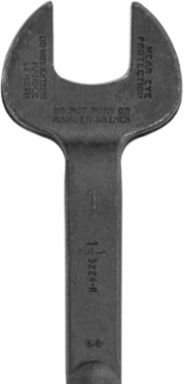

Catalog number, bolt size and nominal opening size are stamped on every wrench for easy identification
American Bridge design
Made in USA

Documentation & Downloads

Specifications

Key Specifications

Nominal Opening	1-1/2" (3.8 cm)
Nut Type	U.S. Regular
Taper Diameter	1-1/8" to 1/4" (2.9 to 0.6 cm)
Application	Connecting Steel Members
Regular Nut Size	1" (2.5 cm)
Overall Height	2.5 cm (1 Inch)
Overall Width	3.6 Inch (9.1 cm)
Height	1.0000 in
Depth	18.0000 in

Material	Alloy Steel
Type	Spud Wrench
Offset Angle	60°
Finish	Black Oxide with a Rust Preventative
Square Nut Size	1" (2.5 cm)
Head Width	9.2 cm (3.625 Inch)
Overall Length	18 Inch (45.7 cm)
Width	3.6250 in
Weight	3.3700 lbs
