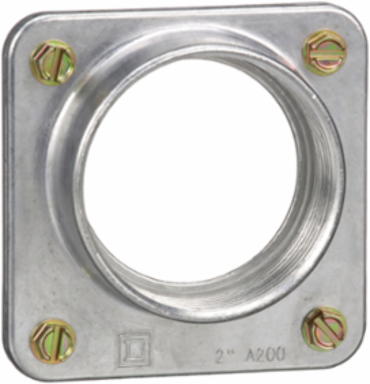

Square D A200 Series A Hub Accessory, 2.00 Inch Wire Size, Rainproof, 3.31 Inch Height
Square D A200 Series A Hub Accessory, 2.00 Inch Wire Size, Rainproof, 3.31 Inch Height
- MPN: A200
- UPC: 785901029519
- PPN: SCH-A200
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$91.78/ EA
Description

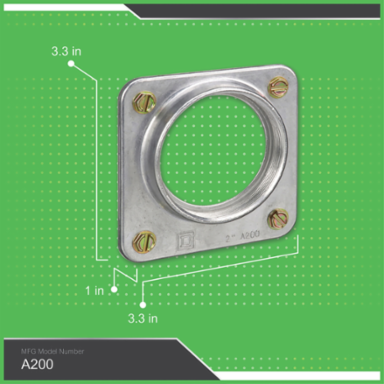

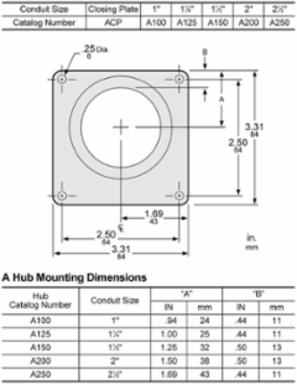

Square D individual meter sockets have provisions to feed a downstream main lug load center, main breaker load center, or an individually enclosed service disconnect. Units can have a combination of releases, horn, or no bypasses to handle any meter socket situation. Units supplied with hub opening in top end wall require the use of a bolt on hub or closing plate. This accessory is a hub which is rated for 2.00 in wire size on Series A systems. This hub is rainproof and measures at 3.31 inches tall, 3.31 inches wide and 1.03 inches deep.
Specifications
Conformance Attributes
- Product Certifications
- UL Listed
Important Information Attributes
- Persona Type Ids
- EU, EUA, LC, OM, SC
- Product Or Component Type
- conduit entry, hub
- Local Publishable Date
- 2026-03-25
- Return Indicator
- Y
- Stock Policy
- 1
- H And D Subrange
- RESI
- H And D Enrichment Function
- ACCESSORIES
- H And D Enrichment Class 4
- Enclosure accessory
- Weee Product Category
- 5
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- COMMERCIAL
- Product Kit Identifier
- N
- Device Composition
- adaptor plate
- Hub Type
- A
- Number Of Mounting Holes
- 4
- Product Destination
- conduit entry
- Returnability
- Yes
- Sustainable Packaging
- No
- Offer Owner Code
- 190788
- Width Nominal
- 3.3 in
Persona Type NamesEnd User, Consumer, Contractor, Original Equipment Manufacturer, Electrician
Local Data StatusPublishable
Global Commercial StatusCommercialised
Stocking FlagY
H And D DomainSafety
H And D Enrichment Assignmentyes
H And D Enrichment Class 3Enclosures
Legacy Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2532
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationCommercial
Cable Entryconduit entry 2 "
Energy Efficiency OptimizedFalse
Mounting Supportdirect mounting on box
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductSeries A
Shape Of Screw Headslotted hexagonal
Warranty In Months18
Height Nominal4 in
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Take BackNej
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- conduit entry, hub
Range Of ProductSeries A
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 3.3 in
