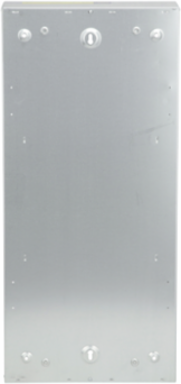

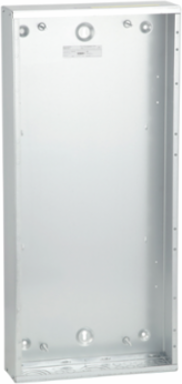

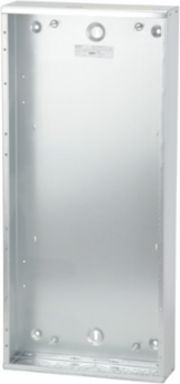

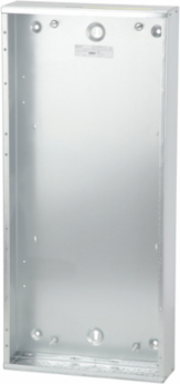

Square D MH44 NEMA 1 Enclosure Box, 20 Inch W x 44 Inch H x 5.75 Inch D, cULus Certified
- MPN: MH44
- UPC: 785901378907
- PPN: SCH-MH44
CAD
$184.32
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

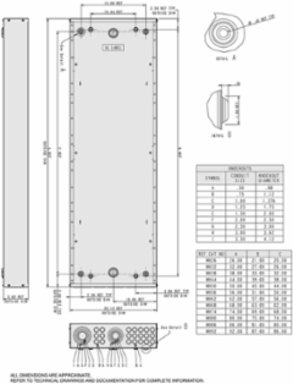

NQ and NF Panelboards applications include commercial buildings, industrial buildings, data centers, stadiums, and offices. NQ and NF Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. These panelboards have many different options for your enclosure box and its accessories. This enclosure box is rated as a Type 1 with one blank end wall and one end wall with knockouts for common conduit sizes. The enclosure dimensions are 20 inch width x 44 inch height x 5.75 inch depth. NQ and NF enclosures are UL listed for use in the USA and Canada. The end walls of NF and NQ enclosures are removable to simplify field modification to support the widest range of electrical conduit connections. NC trim fronts for interiors rated up to 250A may be screwed directly to the deadfront of the NF or NQ panelboard. NC trim fronts for interiors rated 400A or greater are vented and designed to be screwed directly to the Type 1, 2 enclosure of the NF or NQ panelboard. MHxxWP enclosures provide Type 3R/5/12 protection to NF and NQ Panelboards, and are supplied with removable blank end walls. MHxxBE and MHxxD9 Type 1 enclosures are supplied with removable blank end walls at both ends. MHxx enclosures have one blank end wall and one end wall with knockouts for common conduit sizes.
Features
- Precision-engineered as a standard MH-type enclosure, this box is designed exclusively for 400A and 600A Square D NQ and NF panelboards. Utilizing the exact OEM enclosure prevents costly field modifications and ensures a seamless, professional fit for your interior, saving hours of labor during commercial electrical fit-outs.
- The 44"H x 20"W x 5.75"D dimensions provide an optimized internal volume that easily accommodates heavy-gauge copper or aluminum conductors. This spacious design prevents wire crowding and insulation damage, ensuring your industrial installation meets NEC wire-bending space requirements and maintains proper airflow for heat dissipation.
- Rated for NEMA Type 1 indoor protection, this heavy-duty steel housing shields your sensitive circuit breakers and busbars from dust, light, and accidental contact. It is the industry-standard choice for electrical rooms, data centers, and commercial basements where a robust, secure barrier is required to protect the building's core power distribution system.
- Fabricated from high-grade, galvanized steel with a phosphate-treated finish, this box is built to resist corrosion and physical impact during and after installation. The pre-punched knockouts and sturdy mounting holes allow for rapid, secure anchoring to masonry or stud walls, ensuring your electrical infrastructure remains stable and code-compliant for decades.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth5.75 in
Important Information Attributes
- Persona Type Ids
- EU, LC, OM
- Carbon Footprint Of The Distribution Phase [A4]
- 7.444013058146738, 7 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.00001436883098473015, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- N
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- COMMERCIAL
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Product Or Component Type
- enclosure
- Software Version
- v6.2.5-6
- Total Lifecycle Carbon Footprint
- 117 kg CO2 eq.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Mexico, MX
- Energy Model - Use [B6]
- Electricity origin
- Recyclability Potential In %
- 97
- Width Nominal
- 20 in
- [Ue] Rated Operational Voltage
- 600 V AC48 V DC
- Package Weight(Lbs)
- 12.578 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer
Carbon Footprint Of The End-of-life Phase [C1 To C4]21 kg CO2 eq., 21.096712953550167
Carbon Footprint Of The Manufacturing Phase [A1 To A3]88 kg CO2 eq., 88.47531807389336
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2532
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationCommercial
Enclosure Materialsteel
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Sustainable PackagingNo
Pep CodeENVPEP2510012EN
Pep Verification Date2025-11-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal44 in
Certificate AgencycULus
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code7326908688
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 117.01605845442126
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2510012EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2510012EN
Nema Degree Of ProtectionNEMA 1
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-11-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- enclosure
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
