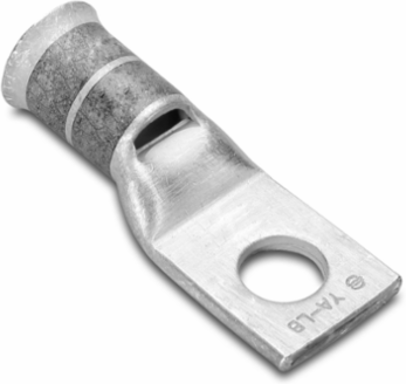

Burndy YA2CLB Standard Length Belled Barrel Terminal, Copper, 3 AWG, 35 kV, 0.33 Inch Hole Size
- MPN: YA2CLB
- UPC: 781810017944
- PPN: BUR-50208U
CAD
$26.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
COPPER COMPRESSION TERMINAL.
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length inch | 0.87 in |
|---|---|
| Dimension - D inch | 0.70 in |
| Dimension - Hole Size mm | 8 mm |
| Dimension - Length Overall inch | 1.94 in |
| Dimension - Outside Diameter inch | 0.42 in |
| Dimension - Strip Length inch | 5/16 |
| Physical Attribute - Tongue Angle | Straight |
| Dimension - Bolt Hole Size inch | 0.33 in |
|---|---|
| Dimension - Hole Size inch | 0.33 in |
| Dimension - L Length Overall mm | 49 mm |
| Dimension - N inch | 0.34 in |
| Dimension - Pad Width inch | 0.61 in |
| Dimension - Z inch | 0.36 in |
Certifications and Compliance
| Certification - CSA Approved | Yes |
|---|---|
| Certification - UL Recognized | No |
| Industry Standard(s) | UL468A-468B |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| Standards - Industry Standards Met | UL468A-468B |
| UL Listed | Yes |
Conductor Related
| Conductor - Copper DLO Size | 3 (125/#24) DLO |
|---|---|
| Conductor - Copper Flex H Size | 3 AWG |
| Conductor - Copper Flex K Size | 3 AWG |
| Conductor - Copper Flex M Size Range | 3 AWG |
| Conductor - Copper Str Navy Size Range | 60 (37) Navy |
| Conductor - Material | Copper |
| Conductor - Copper Flex G Size | 3 AWG |
|---|---|
| Conductor - Copper Flex I Size | 3 AWG |
| Conductor - Copper Flex M Size | 3 AWG |
| Conductor - Copper Str Navy Size | 60 (37) Navy |
| Conductor - Copper Str Size | 2 AWG |
General
| Color Code | Brown |
|---|---|
| Die Index | 10 |
| Feature - Barrel Type | Standard |
| Physical Attribute - Number of Holes | 1 |
| Plated | Y |
| Temperature Rating | 194 |
| Type | Standard Belled Barrel, Tin Plated |
| UPC 12 Digit | 7818100179444 |
| Connector Type | Terminal |
|---|---|
| Feature - Barrel Style | Belled |
| Material | Copper |
| Physical Attribute - Tongue Type | Standard |
| Plating Type | Tin - Electro Plated |
| Trade Name | HYLUG™ |
| UPC | 781810017944 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
Logistics
| Minimum Pack Quantity | 25 |
|---|
