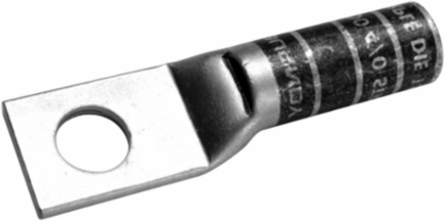

Burndy YAZ2CTC14 Long Length Barrel Terminal, 1/4 Inch Stud, 2.21 Inch Length, 35 kV

MPN: YAZ2CTC14
UPC: 781810239650
PPN: BUR-25020353

$12.75

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Cu Uninsul Comp Terminal Code Cond, Bvl Entry, 1 Hole/W/InspWindow, #2 AWG Code, 60 Navy, 600 V-35 kV, 1/4" Stud, Lng bbl, Brown, 10 Index.

Documentation & Downloads

Specifications

Dimensions

Dimension - B Length inch	1.25 in
Dimension - Hole Size inch	0.27 in
Dimension - L Length Overall mm	56 mm
Dimension - N inch	0.31 in
Dimension - Pad Width inch	0.60 in
Dimension - Stud Size inch	1/4
Physical Attribute - Tongue Angle	Straight

Dimension - Bolt Hole Size inch	0.27 in
Dimension - Hole Size mm	7 mm
Dimension - Length Overall inch	2.21 in
Dimension - Outside Diameter inch	0.42 in
Dimension - Strip Length inch	1-5/16
Dimension - Z inch	0.33 in

Certifications and Compliance

Certification - CSA Approved	Yes
Certification - UL Recognized	No
Standards - RoHS Compliance Status	CM

Certification - ETL	No
Certification - cULus	No
UL Listed	Yes

Conductor Related

Conductor - Copper Str Navy Size	60 (37) Navy
Conductor - Material	Copper

Conductor - Copper Str Size	2 AWG

General

Application	For Code Conductor
Connector Type	Terminal
Feature - Barrel Style	Skived
Material	Copper
Plated	YES
Sub Brand	HYLUG
Type	Long Barrel, Skive, Tin Plated
UPC 12 Digit	7818102396500

Color Code	Brown
Die Index	10
Feature - Barrel Type	Long
Physical Attribute - Number of Holes	1
Plating Type	Tin - Electro Plated
Trade Name	HYLUG™
UPC	781810239650
