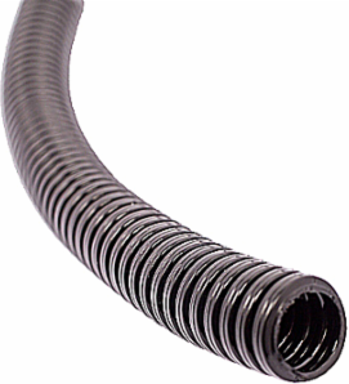

Harnessflex NC10/100M Standard Weight Conduit
- MPN: NC10/100M
- UPC: 786210240589
- PPN: T-B-NC10/100M
CAD
$343.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Standard Weight, General Purpose Conduit, NC Size 10/NW Size 8.5, Outside Diameter 11.5mm, Inside Diameter 8.4mm, Static Bend Radius 15mm, High Flexibility and Fatigue Life, IP40 Rating, Polyamide 6, Reel Length 100 Meters, Black
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39131706 Electrical conduit
- Brand Name
- Harnessflex
- Application
- Extensively Used in Harnesses on HGV and off Road Vehicles Applications Where Superior Protection Against Impact and Mechanical Shock is Preferred. The Conduit is Used for Both Chassis and Engine Applications and Can Be Used in a Wide Range of Temperatures
- Trade Size
- NC10/NW8.5
- Inside Diameter
- 8.4mm
- Radius
- Static Bend Radius 15mm
- Material
- Polyamide/Nylon 6
IGCC5540 Flexible Non-Metallic Conduit
TypeStandard Weight Conduit
StandardADR Approved, RoHS, Conforms with End of Life Vehicle Directive (ELV)EU200/53/EC
Outside Diameter11.5mm
Length100 m
FlexibilityVery High
ColorBlack
European Specifications (ETIM)
- ETIM
- EC001175 Corrugated plastic hose
- Nominal size in inch
- 1/4 inch
- Inner diameter
- 8.4mm
- Operating temperature
- -40-+120°C
- Fire resistance in accordance with UL94
- HB
- Colour
- Black
- Bending strength
- Flexible
- Halogen free
- Y
Nominal diameter10mm
Outer diameter11.5mm
MaterialPolyamide 6
Degree of protection (IP)IP40
UV resistantY
Sheathing materialNot sheathed
Lengthwise slottedN
Packaging
- Inner Quantity
- 1
- Outer Quantity
- 10
- Weight Uom
- 4.52 lbs. Each
Inner Dimensions (inches)17x37x17
Outer Dimensions (inches)17x37x17
