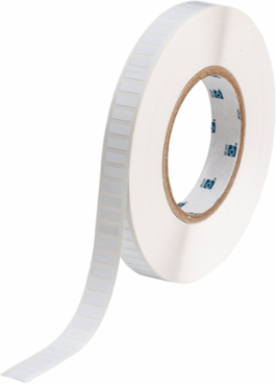

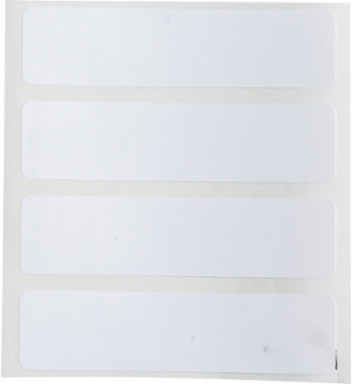

Brady THT-97-473-10 Static Dissipative Glossy Polyester Labels, 0.2" H x 0.5" W, 10000 Labels, White
Brady THT-97-473-10 Static Dissipative Glossy Polyester Labels, 0.2" H x 0.5" W, 10000 Labels, White
- MPN: THT-97-473-10
- UPC: 662820545507
- PPN: BRD-THT-97-473-10
- UNSPSC: 55121612
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$203.51/ EA
Description
This B-473 material is a low profile polyimide and polyester material that has static dissipative properties.
Features

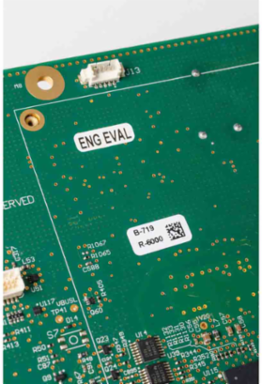

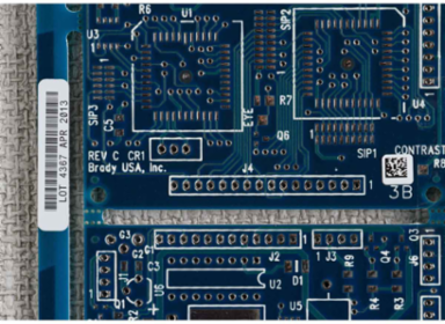

- Primarily used for printed circuit boards and electronic component labeling
- The B-473 material is a white glossy polyester with a permanent static dissipative adhesive and liner
- Has surface resistivity values in the recommended range for dissipative ESD packaging materials
Specifications
Specifications
- Applications
- Circuit Board Labeling
- Brand Name
- Brady®
- Color
- White
- Diagram
- Icon 3 (triangle)
- Finish
- Gloss
- Label/Media Format
- Roll
- Print Technology
- Thermal Transfer
- Printer Compatibility
- BBP12; BBP11; BP1244; BP1344; BP2461; BP3481; BP6441; MVP200; MVP300; 300XPlusII; 360XPlusII; 600XPlusII; PR200Plus; PR300Plus; PR600Plus; IP300; IP600; i7100; i5100
- Quantity per Roll
- 10000
- Recommended Ribbon
- IP-R6006; R6006
- Shape
- Rectangle
- Total Qty per Pack
- 10000 Label(s) / Roll
- Trade Name
- WorkHorse
- After Process
- Yes, this material will work with this application
- Label Properties
- Harsh Environment Labels; Heat Resistant Labels; Permanent Adhesive Labels
- Material Properties
- Static-dissipative
- SAP B-Number
- B-473
- Dimensions
- 0.2 in H x 0.5 in W
- Dimensions 2
- 0.2 in H x 0.5 in W
- Height (mm/cm/m)
- 5.08 mm
- Maximum Service Temperature °C
- 120 °C
- Minimum Service Temperature °C
- -40 °C
- Printable Area Dimensions (Metric)
- 5.08 mm H x 12.7 mm W
- Printable Area Width (mm/cm/m)
- 12.7 mm
- Size - Width (mm)
- 12.70 mm
- Thickness (mm/cm/m)
- 0.09 mm
- Vertical Repeat (mm)
- 7.62 mm
- Width (in/ft/yd)
- 0.5 in
Board ApplicationStatic Dissipative; Through Hole - Top
Bulk PartNot a Bulk Part
Compatible Surface TypesHigh Surface Energy
Enables Industry ComplianceANSI/ESD S541-2008; ASTM B 117; ASTM D 1000; ASTM D 2979; ASTM G 155; CSA Approved; UL Recognized
For Use with PrinterBBP®81 Label Printer; BRADY IP® Series Label Printer; BradyPrinter i5100; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
Primary Noun, Basic FunctionLabel
Printer and Label ApplicationsCircuit Board
Printer Compatibility (Print)BBP12; i7100; i5100
Quantity per Row1
Ribbon SeriesR6000HF
Suggested Ribbon SeriesR4900; R6000 Halogen Free
Total Quantity10000
Adhesive TypeStatic Dissipative Permanent Acrylic
Brady Material NumberB-473
MaterialStatic Dissipative Polyester
Resistance PropertiesAbrasion-Resistant; Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
Core Diameter (mm/cm/m)76.20 mm
Dimensions (Metric)12.70 mm W x 5.08 mm H
Height (in/ft/yd)0.2 in
Label/Tape Size (in/ft/yd)0.2 in H x 0.5 in W
Maximum Service Temperature °F248 °F
Minimum Service Temperature °F-40 °F
Printable Area Height (mm/cm/m)5.08 mm
Sign Size-General0.2 in x 0.5 in
Thickness (in/ft/yd)0.0034 in
Vertical Repeat0.3 in
Web Width (mm/cm/m)17.78 mm
Width (mm/cm/m)12.7 mm
Regulatory Information
- CA Prop 65 Labeled
- Yes
- Contains CA PROP 65 Substance
- Yes Contains-Label required
- Contains CA PROP 65 Warning Type
- Cancer
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
CA Prop 65 Label WarningWARNING: Cancer - www.P65warnings.ca.gov
Contains CA PROP 65 SubstanceYes
Contains CA Prop 65 Cancer Causing ChemicalNickel
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
