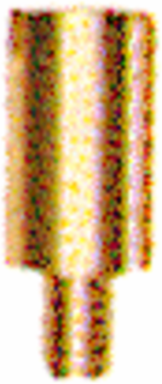

Weidmuller 0169900000 STB 14/D6/4/M3 SAK10
- MPN: 0169900000
- PPN: WDM-0169900000
CAD
$0.96
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Accessories, Socket
Documentation & Downloads
Specifications
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Depth | 19 mm |
|---|---|
| Net weight | 1.8 g |
| Depth (inches) | 0.748 inch |
|---|---|
| Diameter | 6 mm |
Dimensions
| O.D. | 6 mm |
|---|---|
| Plug-in depth | 12.5 mm |
| Diameter | 6 mm |
|---|
Additional Technical Data
| Explosion-tested version | No |
|---|---|
| Type of fixing | when screwed in |
| Installation advice | Direct mounting |
|---|
Material Data
| Material | Copper - zinc |
|---|---|
| Colour | grey |
| Surface finish | galvanized |
|---|
Classifications
| ETIM 6.0 | EC002848 |
|---|---|
| eClass 9.0 | 27-14-11-92 |
| eClass 10.0 | 27-14-11-92 |
| ETIM 7.0 | EC002848 |
|---|---|
| eClass 9.1 | 27-14-11-92 |
| UNSPSC | 30-21-18-11 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
System Specifications
| Version | For the mounting rails |
|---|
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Continuous operating temp., max. | 100 °C |
| Storage temperature, min. | 10 °C |
|---|---|
| Continuous operating temp., min. | -50 °C |
