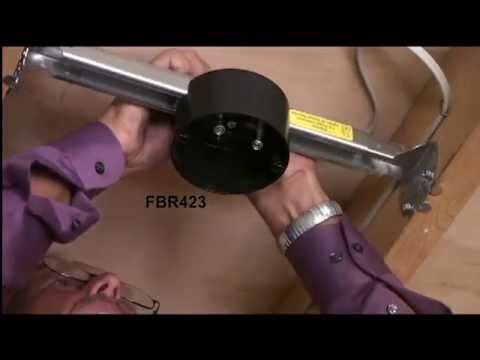

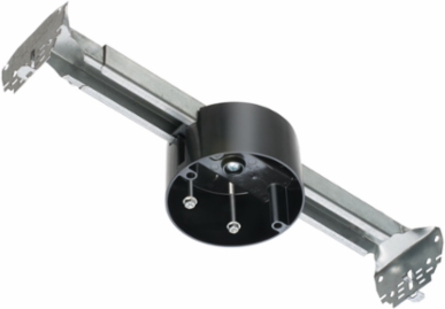

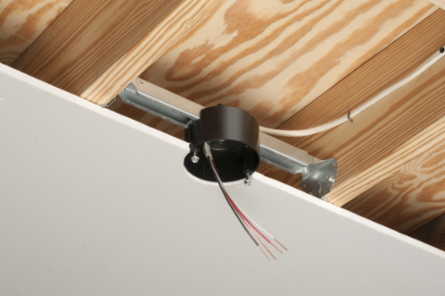

Arlington Industries FBR423 Steel adjustable bracket with plastic box for fan and fixture mounting. 2 hour fire rated. 23.0 cu. 70lb fan rated at 24" on center, 90lb fixture rated at 16" on center, 70lb fan rated 16" on center, 150lb fixture rated at 16" on center.

Steel adjustable bracket with plastic box for fan and fixture mounting. 2 hour fire rated. 23.0 cu. 70lb fan rated at 24" on center, 90lb fixture rated at 16" on center, 70lb fan rated 16" on center, 150lb fixture rated at 16" on center.
Steel adjustable bracket with plastic box for fan and fixture mounting. 2 hour fire rated. 23.0 cu. 70lb fan rated at 24" on center, 90lb fixture rated at 16" on center, 70lb fan rated 16" on center, 150lb fixture rated at 16" on center.
  • MPN: FBR423
  • UPC: 018997523105
  • PPN: ARL-FBR423

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$30.30/ EA

Description

Steel adjustable bracket with plastic box for fan and fixture mounting. 2 hour fire rated. 23.0 cu. 70lb fan rated at 24" on center, 90lb fixture rated at 16" on center, 70lb fan rated 16" on center, 150lb fixture rated at 16" on center.

Specifications

Basic Information

UPC
018997523105
Standard Packaging
10pcs
Listing
UL
Unit Packaging1pc
Country of OriginUnited States

Physical Information

Weight
1.460 lbs/each
Width
4.233"
Material(s)
Plastic, Steel
Height2.548"
ColorBlack

Technical Information

Ceiling Thickness
Adjustable up to 1-1/4"
Trade Size
23.0 cu. in.
Load RatingUL rating: 70 lb fan, 90 lb fixture at 24" o.c.;
