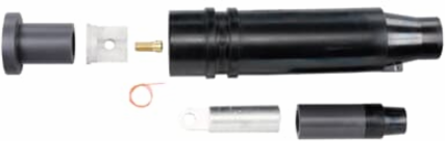

Thomas & Betts K655YSR-H0240-SG3 STR RECEPTACLE
- MPN: K655YSR-H0240-SG3
- UPC: 783786059416
- PPN: T-B-K655YSR-H0240-SG3
- UNSPSC: 39121421
CAD
$1246.67
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
600 Amp, 15-25kV, 600 Series Deadbreak Straight Receptacle. Cable Insulation Diameter 0.850 inch to 1.050 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 1/0 /Compacted Solid 2/0. Cold Shrinkable Seal with Copper Braid and Constant Force Spring Included.
Features
- Fully Shielded, Fully Submersible, Can be easily Connected or Disconnected in a De-Energized State
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Buy American Act (BAA) Compliant
- Contact Manufacturer
- Brand Name
- ELASTIMOLD
- Connection
- Compression
- Size
- Length 16.98 inch x 4.19 inch Diameter
- Material
- Housing - EPDM Rubber
- Color
- Black
- Insulation
- Yes, EPDM Rubber
- Environmental Conditions
- All Weather Conditions
American Recovery and Reinvestment Act (ARRA) CompliantContact Manufacturer
IGCC4586
ApplicationThese Connectors allow a straight cable connection on Switchgear or Electrical Apparatus equipped with 600 Amp Bushings
StandardANSI/IEEE Standard 386
Conductor Range1/0 STR/COMPR AWG , 2/0 SOL/COMPT AWG
Voltage Rating15 to 25 kV
Amperage Rating600 A
Temperature Rating-40 to +65 C
